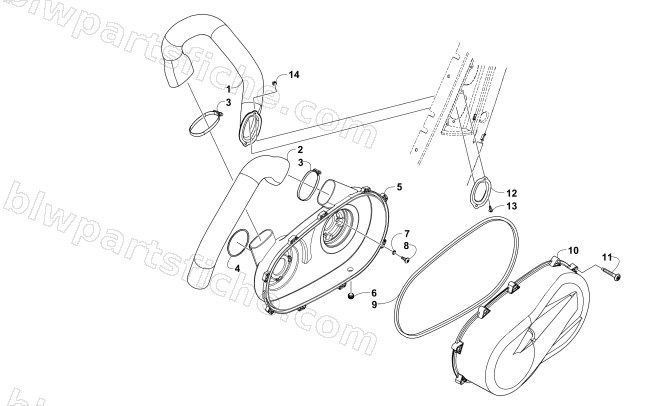

2014 Arctic Cat WILDCAT TRAIL XT — CASE/BELT COOLING AND CLUTCH COVER ASSEMBLIES
2014 WILDCAT TRAIL XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-347 | DUCT, CLUTCH-INLET | 1 | $89.95 | |
| 2 | 0413-313 | DUCT,CLUTCH-OUTLET | 1 | $82.95 | |
| 3 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 4 | 0830-223 | O-RING - #2-144 | 1 | $2.88 | |
| 5 | 0806-173 | COVER,CVT-ASSEMBLY | 1 | $81.95 | |
| 6 | 0806-160 | PLUG,DRAIN | 1 | $2.68 | |
| 7 | 0830-227 | O-RING - #2-011 | 1 | $3.02 | |
| 8 | 1423-220 | SCREW,SHOULDER-M6 X 1.0 TAPTITE | 1 | $1.50 | |
| 9 | 0806-161 | SEAL,CVT COVER | 1 | $16.49 | |
| 10 | 0806-141 | COVER,CVT-OUTER (WC50) | 1 | $66.95 | |
| 11 | 1423-221 | SCREW, M6X1.0 DOG-POINT | 1 | $1.37 | |
| 12 | 4406-606 | PLATE,CLUTCH INTAKE | 1 | $10.97 | |
| 13 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 |
