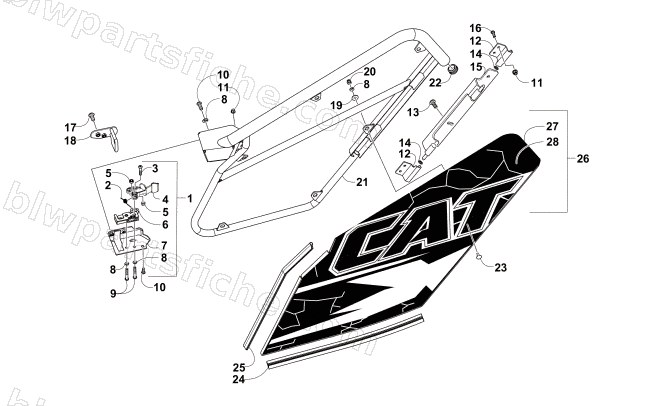

2014 Arctic Cat WILDCAT 4X LTD — REAR DOOR ASSEMBLY
2014 WILDCAT 4X LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2436-264 | KIT,LATCH-DOOR-RR-RH-ASSY (WC 4X LTD) | 1 | $197.95 | |
| 1 | 2436-265 | KIT, LATCH-DOOR-RR-LH-ASSY (WC 4X LTD) | 1 | $197.95 | |
| 2 | 1423-235 | SPRING,LATCH HANDLE | 1 | $4.54 | |
| 3 | 1423-231 | SCREW,BUTTON HEAD TORX BLK M6X1.0X30 | 1 | $2.61 | |
| 4 | 4406-999 | HANDLE,DOOR | 1 | $19.25 | |
| 5 | 1423-153 | HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) | 1 | $0.95 | |
| 6 | 4406-908 | LATCH,ROTARY (50203) | 1 | $101.95 | |
| 6 | 4406-909 | LATCH,ROTARY (50202) | 1 | $82.95 | |
| 7 | 4406-464 | BRKT,DOOR LATCH-REAR-RH | 1 | $24.77 | |
| 7 | 4406-465 | BRKT,DOOR LATCH-REAR-LH | 1 | $24.77 | |
| 8 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 9 | 1423-232 | SCREW,BUTTON HEAD TORX BLK M6X1.0X40 | 1 | $3.02 | |
| 10 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 11 | 1423-171 | NUT,FLG LOCK-NYLON SL M6-1.0 CL8 Z&B | 1 | $1.23 | |
| 12 | 4406-447 | HINGE,WELDT-2 | 1 | $34.95 | |
| 12 | 4406-446 | HINGE,WELDT-1 | 1 | $27.95 | |
| 13 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 14 | 1423-224 | BUSHING,DOOR HINGE | 1 | $5.23 | |
| 15 | 5506-490 | HINGE,MAIN WELDT-RH | 1 | $116.95 | |
| 15 | 5506-491 | HINGE,MAIN WELDT-LH | 1 | $116.95 | |
| 16 | 1423-236 | SCREW,BUTTON HEAD TORX BLK M6X1.0X20 | 1 | $2.06 | |
| 17 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 | |
| 18 | 4406-468 | STRIKER,DOOR-REAR-RH | 1 | $25.95 | |
| 18 | 4406-469 | STRIKER,DOOR-REAR-LH | 1 | $25.95 | |
| 19 | 1423-264 | WASHER,FLAT-18X6.4X1.6-BLK | 1 | $1.09 | |
| 20 | 1423-263 | NUT,HEX ACORN M6-1.0 BLK | 1 | $2.06 | |
| 21 | 5506-590 | FRAME,DOOR-RH-REAR-BLK | 1 | $409.95 | |
| 21 | 5506-591 | FRAME,DOOR-LH-REAR-BLK | 1 | $409.95 | |
| 22 | 1423-234 | CAP,PLASTIC-1.25" TUBE | 1 | $1.92 | |
| 23 | 1423-233 | BOLT,CARRIAGE CL8.8 BLK M6X1.0X16 | 1 | $1.78 | |
| 24 | 4406-467 | TRIM,DOOR SEAL-REAR-LOWER | 1 | $25.95 | |
| 25 | 4406-466 | TRIM,DOOR SEAL-REAR-UPPER | 1 | $25.95 | |
| 26 | 0518-166 | DOOR,PANEL W/DECALS-VR-REAR-RH(WC 4X LTD | 1 | $356.95 | |
| 26 | 0518-167 | DOOR,PANEL W/DECALS-VR-REAR-LH(WC 4X LTD | 1 | $356.95 | |
| 26 | 0518-162 | DOOR,PANEL W/DECALS-MB-REAR-RH(WC 4X LTD | 1 | $339.95 | |
| 26 | 0518-163 | DOOR,PANEL W/DECALS-MB-REAR-LH(WC 4X LTD | 1 | $339.95 | |
| 27 | 4406-462 | PANEL,DOOR SKIN-RH-REAR-BLK | 1 | $254.95 | |
| 27 | 4406-463 | PANEL,DOOR SKIN-LH-REAR-BLK | 1 | $254.95 | |
| 28 | 4411-026 | DECAL,RR DOOR UPR RH-VR | 1 | $163.95 | |
| 28 | 4411-027 | DECAL,RR DOOR UPR LH-VR | 1 | $163.95 | |
| 28 | 4411-010 | DECAL,RR DOOR UPR RH-MB | 1 | $148.95 | |
| 28 | 4411-011 | DECAL,RR DOOR UPR LH-MB | 1 | $148.95 |
