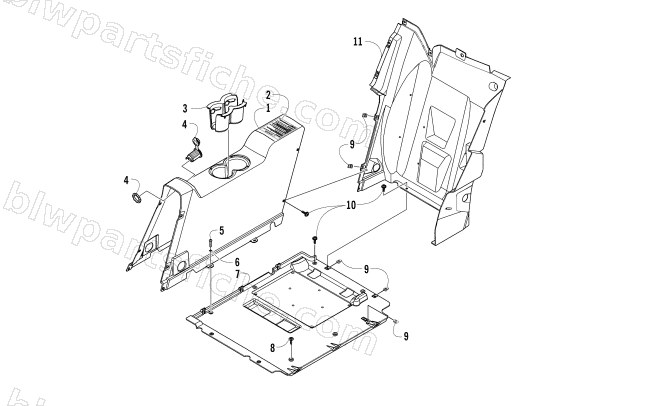

2014 Arctic Cat WILDCAT 4X LTD — REAR CONSOLE AND FLOOR PANEL ASSEMBLY
2014 WILDCAT 4X LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-264 | CONSOLE,REAR-W/DECALS | 1 | $89.95 | |
| 2 | 3411-327 | DECAL,WARNING REAR PASSENGER-MID | 1 | $4.95 | |
| 3 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 6 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 7 | 4406-110 | PANEL,FLOOR REAR-RH | 1 | $100.95 | |
| 7 | 4406-111 | PANEL,FLOOR REAR -LH | 1 | $100.95 | |
| 8 | 1423-142 | SCREW,HH W/SPRING WASHER M6X1.0X30 | 1 | $1.64 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 4406-228 | PANEL,REAR SPLASH-RH | 1 | $82.95 | |
| 11 | 4406-229 | PANEL,SPLASH-REAR-LH | 1 | $82.95 |
