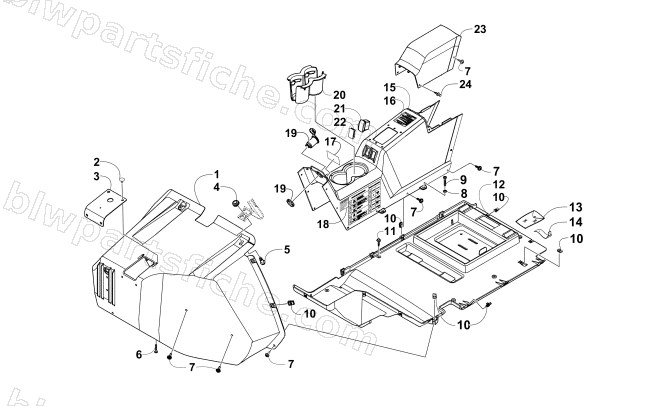

2014 Arctic Cat WILDCAT 4X LTD — FRONT CONSOLE AND FLOOR PANEL ASSEMBLY
2014 WILDCAT 4X LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-592 | PANEL,INNER FENDER-FRT-RH | 1 | $100.95 | |
| 1 | 2416-593 | PANEL,INNER FENDER-FRT-LH | 1 | $100.95 | |
| 2 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 3 | 2416-983 | SHIELD,SPLASH-BRAKE PEDAL | 1 | $4.82 | |
| 4 | 1423-104 | GROMMET | 1 | $1.37 | |
| 5 | 1423-125 | SCREW,SHOULDER-MR 6 X 1.0 X 24mm | 1 | $4.68 | |
| 6 | 1423-083 | SCREW,TSPH 1/4-10 X 1-1/4 PLASTITE | 1 | $2.19 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 8 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 9 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 1423-142 | SCREW,HH W/SPRING WASHER M6X1.0X30 | 1 | $1.64 | |
| 12 | 2416-516 | PANEL,FLOOR-RH | 1 | $148.95 | |
| 12 | 2416-517 | PANEL,FLOOR-LH | 1 | $148.95 | |
| 13 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 14 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 15 | 7506-083 | CONSOLE,FRONT W/DECALS | 1 | $92.95 | |
| 16 | 3411-262 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 17 | 2411-311 | DECAL,STARTING INSTRUCTIONS-PARK | 1 | $13.73 | |
| 18 | 2411-940 | DECAL,WARNING-TCLOC WILDCAT (BLACK) | 1 | $13.73 | |
| 19 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 20 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 21 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 22 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 23 | 2416-841 | PANEL,ACCESS-BATTERY | 1 | $37.95 | |
| 24 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 |
