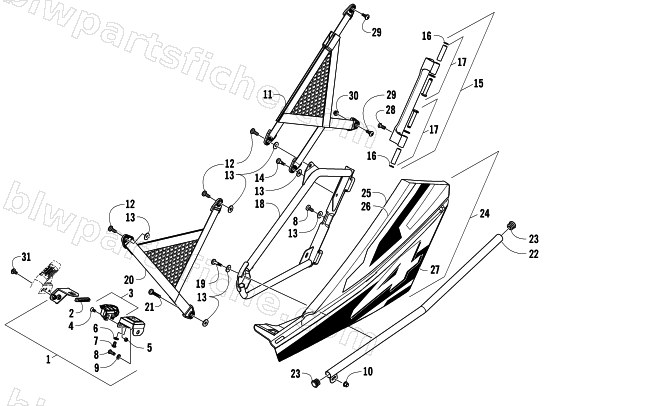

2014 Arctic Cat WILDCAT 4 LTD — REAR DOOR ASSEMBLY
2014 WILDCAT 4 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1436-802 | KIT,BUCKLE-REAR-RH-ASSY | 1 | $162.95 | |
| 1 | 1436-803 | KIT,BUCKLE-REAR-LH-ASSY | 1 | $162.95 | |
| 2 | 4406-262 | BUMPER,LATCH | 1 | $3.95 | |
| 3 | 1436-475 | TONGUE GUIDE-DOOR-ASSY | 1 | $41.95 | |
| 4 | 1423-155 | SFH SCREW BLK CL10.9 M5X12 (ISO 10642) | 1 | $2.47 | |
| 5 | 1423-154 | HEX NYLON NUT CL8 BLK ZINC M5 (DIN 985) | 1 | $0.95 | |
| 6 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 7 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 8 | 1423-113 | SCREW,CAP BUTTON HEAD TORX BLK M6-1X10 | 1 | $3.85 | |
| 9 | 1423-119 | FLAT WASHER BLK MAGNI 575 COATING M6 | 1 | $3.30 | |
| 10 | 1423-171 | NUT,FLG LOCK-NYLON SL M6-1.0 CL8 Z&B | 1 | $1.23 | |
| 11 | 4406-260 | NET,FABRIC-UPPER-REAR | 1 | $45.95 | |
| 12 | 1423-196 | BOLT,SHOULDER-M6 X 1.0 X 12mm LG | 1 | $5.37 | |
| 13 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 14 | 1423-187 | BOLT,SHOULDER-M5X0.8X17MM | 1 | $8.95 | |
| 15 | 1436-476 | HINGE-DOOR-RH-ASSY | 1 | $90.95 | |
| 15 | 1436-454 | HINGE-DOOR-LH-ASSY | 1 | $90.95 | |
| 16 | 1423-118 | CIRCLIP BLK MAGNI 575 COATING (8MM) | 1 | $6.89 | |
| 17 | 0518-096 | KIT,DOOR HINGE PIN | 1 | $39.95 | |
| 18 | 5506-200 | FRAME,REAR DOOR-RH-BLACK | 1 | $241.95 | |
| 18 | 5506-201 | FRAME,REAR DOOR-LH-BLACK | 1 | $241.95 | |
| 19 | 1423-192 | BOLT,SHOULDER-M5X0.8X23MM | 1 | $5.95 | |
| 20 | 4406-261 | NET,FABRIC-LOWER-REAR | 1 | $45.95 | |
| 21 | 1423-205 | SCREW,SHOULDER-M6 X 1.0 X 35-BLK | 1 | $2.47 | |
| 22 | 5506-204 | TUBE,REAR DOOR FRAME-RH-BLACK | 1 | $45.95 | |
| 22 | 5506-205 | TUBE,REAR DOOR FRAME-LH-BLACK | 1 | $45.95 | |
| 23 | 4406-013 | CAP,PLASTIC | 1 | $3.57 | |
| 24 | 0518-136 | DOOR,PANEL W/DECALS-TAG-REAR-RH(WC4 LTD | 1 | $298.95 | |
| 24 | 0518-137 | DOOR,PANEL W/DECALS-TAG-REAR-LH(WC4 LTD | 1 | $298.95 | |
| 24 | 0518-132 | DOOR,PANEL W/DECALS-OM-REAR-RH(WC4 LTD) | 1 | $298.95 | |
| 24 | 0518-133 | DOOR,PANEL W/DECALS-OM-REAR-LH(WC4 LTD) | 1 | $298.95 | |
| 25 | 4406-256 | PANEL,REAR DOOR-RH | 1 | $236.95 | |
| 25 | 4406-257 | PANEL,REAR DOOR-LH | 1 | $236.95 | |
| 26 | 3411-840 | DECAL,RR DOOR UPR RH-TAG | 1 | $50.95 | |
| 26 | 3411-841 | DECAL,RR DOOR UPR LH-TAG | 1 | $50.95 | |
| 26 | 3411-824 | DECAL,RR DOOR UPR RH-ORG MET | 1 | $50.95 | |
| 26 | 3411-825 | DECAL,RR DOOR UPR LH-ORG MET | 1 | $50.95 | |
| 27 | 3411-842 | DECAL,RR DOOR LWR RH-TAG | 1 | $50.95 | |
| 27 | 3411-843 | DECAL,RR DOOR LWR LH-TAG | 1 | $50.95 | |
| 27 | 3411-826 | DECAL,RR DOOR LWR RH-ORG MET | 1 | $50.95 | |
| 27 | 3411-827 | DECAL,RR DOOR LWR LH-ORG MET | 1 | $50.95 | |
| 28 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 29 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 30 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 31 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 |
