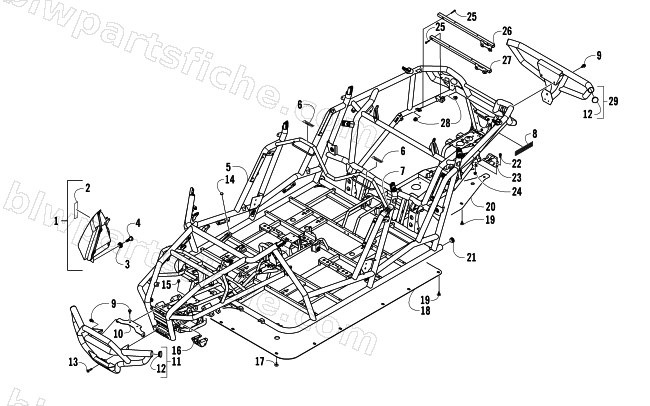

FRAME, HEADLIGHTS, AND RELATED PARTS
2014 WILDCAT 4 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-064 | HEADLIGHT,RH-ASSY (W/SIDE REFLECTOR) | 1 | $636.95 | |
| 1 | 0509-065 | HEADLIGHT,LH-ASSY (W/SIDE REFLECTOR) | 1 | $636.95 | |
| 2 | 2411-972 | REFLECTOR,FRONT-RH (WC) | 1 | $10.97 | |
| 2 | 2411-973 | REFLECTOR,FRONT-LH (WC) | 1 | $10.97 | |
| 3 | 1423-104 | GROMMET | 1 | $1.37 | |
| 4 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 5 | 7506-006 | R/B 8506-080 | 1 | $4,660.95 | |
| 6 | 3411-253 | DECAL,WARNING-REAR-PASSENGER | 1 | $10.97 | |
| 7 | 2411-941 | DECAL,WARNING-ROPS WILDCAT (BLACK) | 1 | $4.95 | |
| 8 | 2411-974 | REFLECTOR,REAR (WC) | 1 | $10.97 | |
| 9 | 8410-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 RIE B | 1 | $0.95 | |
| 10 | 5506-176 | BRACKET,BUMPER-PTD BLACK | 1 | $29.95 | |
| 11 | 5506-332 | BUMPER,FRONT-PKG-TAG | 1 | $612.95 | |
| 11 | 5506-439 | BUMPER,FRONT-PKG-MET ORG | 1 | $612.95 | |
| 12 | 1423-190 | CAP-BLACK | 1 | $8.21 | |
| 13 | 8410-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 RIE BLK | 1 | $2.47 | |
| 14 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 15 | 8409-018 | SCREW,CAP-HFH M10X1.25X16 CL10.9 W/204 | 1 | $2.75 | |
| 16 | 4506-703 | BRKT,MTG-FRT GEARCASE-UPPER-PTD BLK | 1 | $49.95 | |
| 17 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 18 | 4506-843 | PLATE,SKID - W4 | 1 | $236.95 | |
| 19 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 20 | 4506-407 | PLATE,SKID - REAR | 1 | $93.95 | |
| 21 | 2416-962 | CAP,FRAME-44.45MM | 1 | $12.35 | |
| 22 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 23 | 4506-637 | BRACKET, REAR SUSP-PAINT | 1 | $29.95 | |
| 24 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 25 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 26 | 4506-680 | TUBE,BOX-FRONT-PTD BLACK | 1 | $41.95 | |
| 27 | 4506-682 | TUBE,BOX-REAR-PTD BLACK | 1 | $41.95 | |
| 28 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 29 | 5506-440 | BUMPER,REAR-PKG-MET ORG | 1 | $466.95 | |
| 29 | 5506-333 | BUMPER,REAR-PKG-TAG | 1 | $525.95 |
