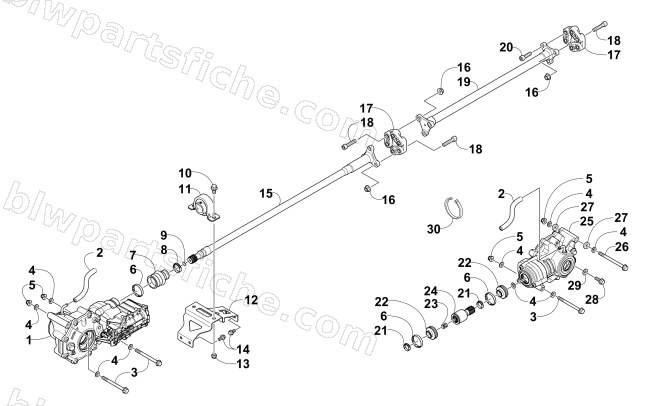

DRIVE TRAIN ASSEMBLY
2014 WILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-082 | GEARCASE,FRONT (3.1 E-LOCK)-ASSY | 1 | $1,441.95 | |
| 2 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 3 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 6 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 7 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 8 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 9 | 1423-090 | O-RING (2-115) | 1 | $1.64 | |
| 10 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 11 | 1402-968 | BEARING,SHAFT CARRIER | 1 | $49.95 | |
| 12 | 2502-019 | BRKT,FRONT DRIVE-PTD BLK | 1 | $37.95 | |
| 13 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 14 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 15 | 2402-058 | SHAFT,PROPELLER-FRONT | 1 | $309.95 | |
| 16 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 17 | 2402-014 | COUPLING,PROP SHAFT | 1 | $126.95 | |
| 18 | 1423-094 | SCREW,CAP-HSH M10 X 1.25 X 45 | 1 | $3.02 | |
| 19 | 2402-056 | SHAFT, PROPELLER | 1 | $366.95 | |
| 20 | 1423-093 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $3.30 | |
| 21 | 1423-061 | CLAMP,BOOT-23MM | 1 | $8.21 | |
| 22 | 1402-951 | BOOT,COUPLER-REAR SHAFT | 1 | $12.35 | |
| 23 | 1402-026 | SPRING | 1 | $1.92 | |
| 24 | 2402-134 | COUPLER, DRIVE | 1 | $144.95 | |
| 25 | 2502-083 | GEARCASE,REAR-ASSEMBLY | 1 | $1,774.95 | |
| 26 | 0423-576 | SCREW,CAP-HFH M10-1.25X130 | 1 | $8.21 | |
| 27 | 1423-062 | SPACER,GEARCASE-REAR | 1 | $4.95 | |
| 28 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 29 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
