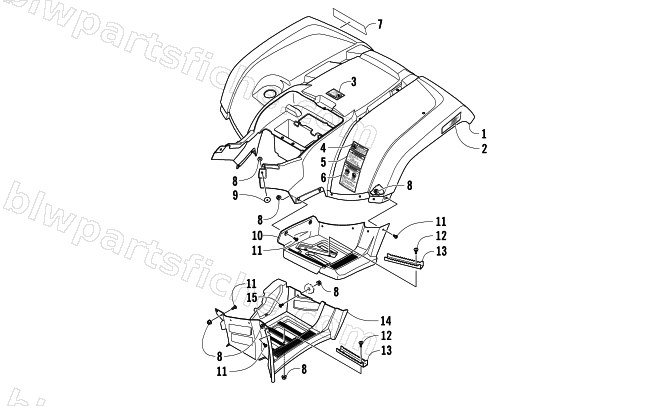

REAR BODY PANEL AND FOOTWELL ASSEMBLIES
2014 TRV 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-324 | FENDER,REAR MARSH-ASSY(TRV) | 1 | $803.95 | |
| 1 | 4506-322 | FENDER,REAR RED-ASSY(TRV) | 1 | $413.95 | |
| 2 | 1411-592 | REFLECTOR,REAR-RH | 1 | $5.37 | |
| 2 | 1411-593 | REFLECTOR,REAR-LH | 1 | $5.37 | |
| 3 | 1411-251 | DECAL,WARNING SEAT-PASSENGER | 1 | $12.35 | |
| 4 | 1411-269 | DECAL,WARNING PASSENGER TRV | 1 | $24.77 | |
| 5 | 2411-176 | DECAL,WARNING-TIRE PSI H2 TRV (7PSI) | 1 | $6.47 | |
| 6 | 2411-257 | DECAL,WARNING-PASSENGER | 1 | $6.47 | |
| 7 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 10 | 2406-042 | FOOTWELL,REAR-RH | 1 | $105.95 | |
| 10 | 2406-043 | FOOTWELL,REAR-LH | 1 | $105.95 | |
| 11 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 12 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 13 | 5506-497 | FOOTPEG,BLACK | 1 | $16.49 | |
| 14 | 4506-156 | FOOTWELL,RTD-RH | 1 | $156.95 | |
| 14 | 4506-157 | FOOTWELL,RTD-LH | 1 | $151.95 | |
| 15 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 |
