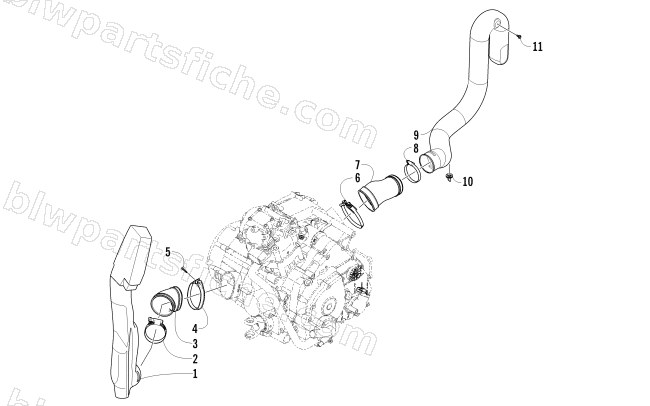

CASE/BELT COOLING ASSEMBLY
2014 TRV 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-126 | DUCT,COOLING-BELT IN | 1 | $58.95 | |
| 2 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 3 | 0413-160 | BOOT,COOLING-BELT | 1 | $30.95 | |
| 4 | 0423-550 | CLAMP,PLASTIC-SCREW-OVAL(9x64x13) | 1 | $2.75 | |
| 5 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 6 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 7 | 0413-231 | BOOT,DUCT-AIR OUT | 1 | $27.95 | |
| 8 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 9 | 0413-106 | DUCT,BELT COOLING-REAR | 1 | $58.95 | |
| 10 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 11 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 |
