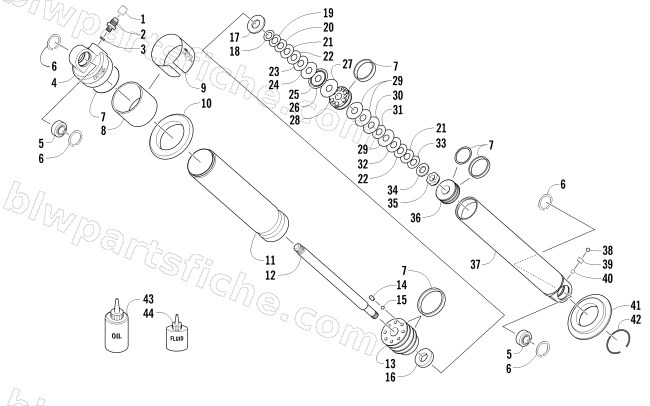

REAR SUSPENSION SHOCK ABSORBER
2014 PROWLER 700 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0404-256 | SHOCK ABSORBER-REAR-FOX FLOAT | 1 | $729.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-651 | VALVE,AIR-ASSY-7/16-20 ORB X SCHRADER | 1 | $32.95 | |
| 3 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 4 | 0404-225 | BODY CAP ASSY, FLOAT SLEEVE | 1 | $0.00 | |
| 5 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 6 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 7 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 8 | 0404-198 | SPRING RETAINER,SLEEVE | 1 | $112.95 | |
| 9 | 2411-567 | DECAL,LOGO-FOX | 1 | $12.35 | |
| 10 | 0404-196 | SPRING RETAINER,UPPER | 1 | $6.75 | |
| 11 | 0404-234 | SLEEVE ASSEMBLY,1.834 ID | 1 | $267.95 | |
| 12 | 3604-481 | SHAFT,CHROME-.498" X 7.685" | 1 | $99.95 | |
| 13 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 14 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 15 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 16 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 17 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 18 | 2603-224 | VALVE,0.620 X 0.377 X .015 | 1 | $5.51 | |
| 19 | 0603-878 | VALVE, SHOCK .700X.012(040-12-070) | 1 | $12.95 | |
| 20 | 0603-879 | VALVE, SHOCK .800 X.012(040-12-080) | 1 | $6.95 | |
| 21 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 22 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 23 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 24 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 25 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 26 | 2603-936 | VALVE,RING SHIM-1.25ODX 1.110IDX .008THK | 1 | $6.95 | |
| 27 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 28 | 0603-208 | PISTON,SHOCK-.078 DIA HOLE | 1 | $97.95 | |
| 29 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 30 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 31 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 32 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 33 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 34 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 35 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 36 | 0404-230 | PISTON ASSEMBLY,1.459 BORE | 1 | $35.95 | |
| 37 | 0404-227 | BODY,FLOAT SHOCK | 1 | $360.95 | |
| 38 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 39 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 40 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 41 | 0404-197 | SPRING RETAINER,LOWER | 1 | $6.75 | |
| 42 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 43 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 44 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 |
