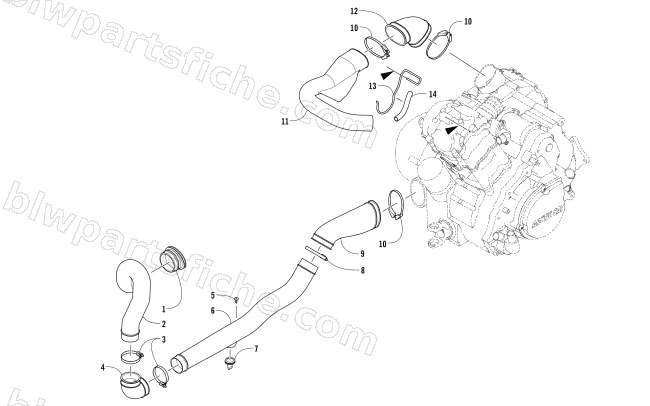

CASE/BELT COOLING ASSEMBLY
2014 PROWLER 700 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-088 | GROMMET,CLUTCH INTAKE | 1 | $5.65 | |
| 2 | 0413-275 | DUCT,CLUTCH-AIR IN | 1 | $64.95 | |
| 3 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 4 | 0413-098 | BOOT,AIR DUCT | 1 | $16.49 | |
| 5 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 6 | 0413-236 | DUCT,CLUTCH IN-#1 | 1 | $58.95 | |
| 7 | 0470-442 | VALVE, AIR CLEANER | 1 | $13.73 | |
| 8 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 | |
| 9 | 0413-274 | BOOT,CLUTCH-IN | 1 | $40.95 | |
| 10 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 11 | 0413-291 | DUCT,CLUTCH-AIR OUT | 1 | $94.95 | |
| 12 | 0413-109 | BOOT,AIR OUT | 1 | $20.63 | |
| 13 | 0413-298 | WIREFORM,SUPPORT-CLUTCH DUCT | 1 | $20.63 | |
| 14 | 0610-513 | HOSE,GASLINE-25' | 1 | $89.95 |
