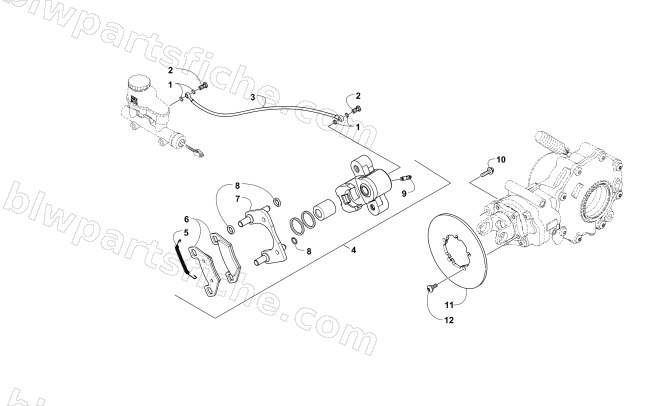

2014 Arctic Cat PROWLER 500 HDX — REAR BRAKE ASSEMBLY
2014 PROWLER 500 HDX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 2 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 3 | 2402-136 | HOSE,BRAKE | 1 | $156.95 | |
| 4 | 2502-066 | KIT,1"DRIVELINE/HYD CALIPER-FULL ASSY | 1 | $290.95 | |
| 5 | 1502-161 | KIT,PAD SPRINGS-ANTI/RATTLE | 1 | $22.01 | |
| 6 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 7 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 8 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 9 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 10 | 8408-836 | SCREW,CAP-HFH M8X1.25X35 CL8.8 w/2353 | 1 | $2.47 | |
| 11 | 1402-710 | ROTOR-MACH (DURABAR) | 1 | $126.95 | |
| 12 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 |
