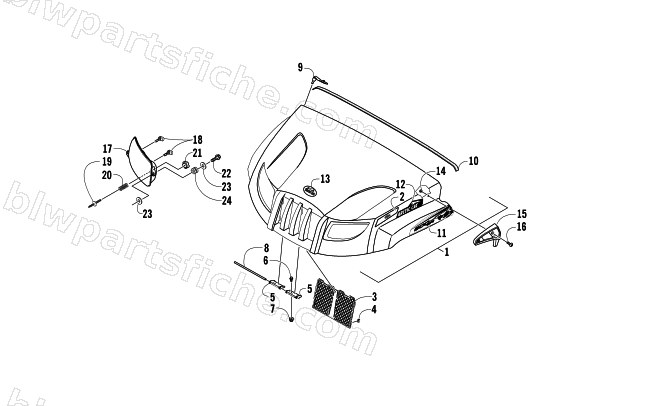

HOOD AND HEADLIGHT ASSEMBLY
2014 PROWLER 500 HDX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-478 | HOOD,MARSH-RTD-ASSY | 1 | $945.95 | |
| 1 | 4506-477 | HOOD,RED-RTD-ASSY | 1 | $945.95 | |
| 2 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 2 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 3 | 1406-733 | GRILL, SCREEN-BLACK | 1 | $26.95 | |
| 4 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 5 | 2516-606 | BRACKET,HOOD HINGE-PTD BLK | 1 | $17.87 | |
| 6 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 1406-915 | PIN,HOOD | 1 | $13.73 | |
| 9 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 10 | 0417-013 | SEAL,HOOD | 1 | $6.89 | |
| 11 | 3411-418 | DECAL,HOOD-SIDE-MARSH GREEN-RH | 1 | $17.87 | |
| 11 | 3411-419 | DECAL,HOOD-SIDE-MARSH GREEN-LH | 1 | $17.87 | |
| 11 | 3411-410 | DECAL,HOOD-SIDE-RED-RH | 1 | $17.87 | |
| 11 | 3411-411 | DECAL,HOOD-SIDE-RED-LH | 1 | $17.87 | |
| 12 | 3411-416 | DECAL,HOOD-MARSH GREEN-RH | 1 | $4.95 | |
| 12 | 3411-417 | DECAL,HOOD-MARSH GREEN-LH | 1 | $4.95 | |
| 12 | 3411-408 | DECAL,HOOD-RED-RH | 1 | $4.95 | |
| 12 | 3411-409 | DECAL,HOOD-RED-LH | 1 | $4.95 | |
| 13 | 9611-752 | DECAL,EMBLEM-GREEN | 1 | $43.95 | |
| 13 | 9611-751 | DECAL,EMBLEM-CHROME | 1 | $42.95 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 2416-512 | LOUVER,HOOD-RH | 1 | $42.95 | |
| 15 | 2416-513 | LOUVER,HOOD-LH | 1 | $42.95 | |
| 16 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 17 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 17 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 18 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 19 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 20 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 21 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 22 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 |
