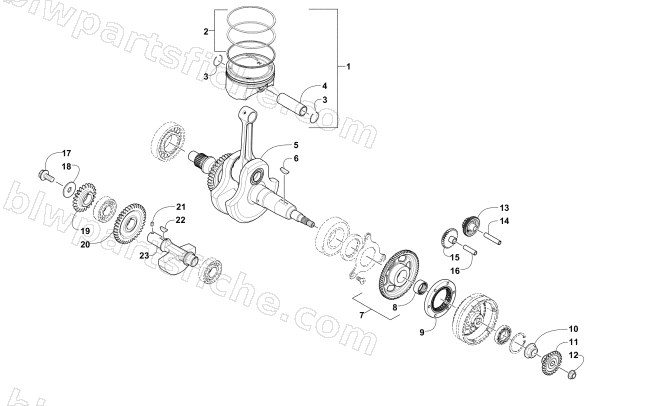

2014 Arctic Cat PROWLER 500 HDX XT — CRANKSHAFT, BALANCER, STARTER GEAR, AND PISTON ASSEMBLIES
2014 PROWLER 500 HDX XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0805-333 | PISTON SET (450) | 1 | $212.95 | |
| 2 | 0805-320 | RING SET,PISTON | 1 | $196.95 | |
| 3 | 0831-060 | CIRCLIP,PISTON PIN | 1 | $3.02 | |
| 4 | 0805-023 | PIN,PISTON | 1 | $37.95 | |
| 5 | 0805-013 | CRANKSHAFT ASSEMBLY | 1 | $1,010.95 | |
| 6 | 0829-039 | KEY WAY ACG | 1 | $3.57 | |
| 7 | 0815-023 | GEAR,STARTER CLUTCH-MFG PKG 73T | 1 | $163.95 | |
| 8 | 0832-069 | BEARING,NEEDLE ROLLER-31 X 39 X 18 | 1 | $90.95 | |
| 9 | 0802-044 | CLUTCH,ONE WAY-W/ HUB ASSEMBLY | 1 | $477.95 | |
| 10 | 3306-705 | NUT FLANGE 16 MM | 1 | $12.35 | |
| 11 | 0811-036 | GEAR,PRIMARY DRIVE | 1 | $79.95 | |
| 12 | 3303-333 | R/B 3307-058 | 1 | $0.95 | |
| 13 | 0815-031 | GEAR,STARTER IDLER-56/14T-NO.1 | 1 | $66.95 | |
| 14 | 0815-007 | PIN, STARTER IDLER GEAR NO. 1 | 1 | $6.75 | |
| 15 | 0815-022 | GEAR,STARTER IDLER-27T-NO.2 | 1 | $37.95 | |
| 16 | 0815-015 | PIN,STARTER IDLER GEAR-NO.2 | 1 | $6.75 | |
| 17 | 0826-118 | SCREW-CAP-HFH M10X1.25X20 W/ THREADLOCK | 1 | $3.57 | |
| 18 | 0828-091 | WASHER-STEEL-30X10X2.5 | 1 | $3.30 | |
| 19 | 0811-009 | GEAR, OIL PUMP DRIVE | 1 | $50.95 | |
| 20 | 0811-006 | GEAR, DRIVEN - NO. 1 | 1 | $114.95 | |
| 21 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 | |
| 22 | 0829-037 | KEY-WOODRUFF-CB SHAFT | 1 | $2.61 | |
| 23 | 0811-035 | SHAFT,BALANCER | 1 | $156.95 |
