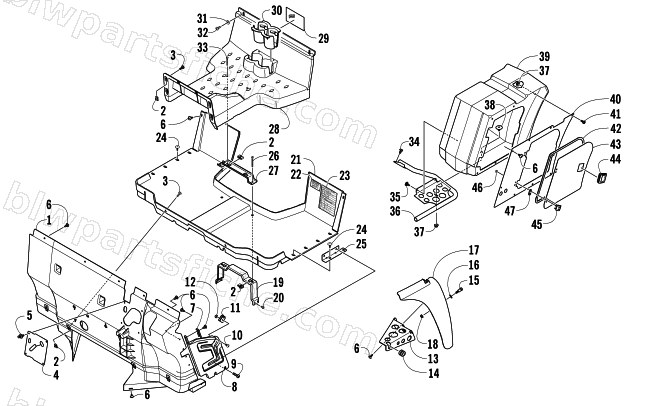

2014 Arctic Cat PROWLER 500 HDX XT — CONSOLE AND FLOOR PANEL ASSEMBLY
2014 PROWLER 500 HDX XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-798 | PANEL,INNER FENDER-ROUTED (HDX) | 1 | $187.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0405-407 | BOOT,STEERING-EPS (DIE CUT) | 1 | $3.71 | |
| 5 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 4506-596 | BRACKET,KICK PANEL-PTD BLACK | 1 | $19.25 | |
| 8 | 2416-848 | PANEL,SIDE KICK | 1 | $50.95 | |
| 9 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 10 | 0423-419 | SCREW,MACH-TSTRH-M6-1.0 X 16 BLACK | 1 | $0.95 | |
| 11 | 2416-846 | TONGUE,BUCKLE | 1 | $10.97 | |
| 12 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 13 | 2506-066 | BRACKET,SUPPORT-RH-PTD BLK | 1 | $27.95 | |
| 13 | 2506-067 | BRACKET,SUPPORT-LH-PTD BLK | 1 | $27.95 | |
| 14 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 15 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 4506-912 | FENDER,FRONT RH-VIBE MET RED-PTD | 1 | $187.95 | |
| 17 | 4506-913 | FENDER,FRONT LH-VIBE MET RED-PTD | 1 | $187.95 | |
| 17 | 4506-642 | FENDER,FRONT RH-EMERALD GRN MET-PTD | 1 | $150.95 | |
| 17 | 4506-643 | FENDER,FRONT LH-EMERALD GRN MET-PTD | 1 | $150.95 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 2516-313 | BRACKET,FLOOR SUPPORT-PAINTED | 1 | $42.95 | |
| 20 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 21 | 2416-085 | R/B 5406-460 | 1 | $539.95 | |
| 22 | 2411-233 | DECAL,"TREAD LIGHTLY" (HDX) | 1 | $3.30 | |
| 23 | 2411-232 | DECAL,WARNING-TCLOC (HDX) | 1 | $6.47 | |
| 24 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 25 | 4506-260 | BRACKET,KICK PANEL-RH-PTD BLACK | 1 | $19.25 | |
| 25 | 4506-261 | BRACKET,KICK PANEL-LH-PTD BLACK | 1 | $19.25 | |
| 26 | 8468-670 | SCREW,MACH-TSPNH M6X1.0X70 CL8.8 BLK | 1 | $3.02 | |
| 27 | 2416-483 | BRKT,SUB-FLOOR MOUNTING | 1 | $26.95 | |
| 28 | 5506-619 | FLOOR,SUB/SHIELD-ASSY | 1 | $283.95 | |
| 29 | 0412-782 | R/B 1412-119 | 1 | $18.95 | |
| 30 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 31 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 32 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 33 | 8468-655 | SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLK | 1 | $1.30 | |
| 34 | 8476-816 | SCREW,MACH-TSTRH M8X1.25X16 Z&Y | 1 | $3.85 | |
| 35 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 36 | 2516-854 | SUPPORT-SIDE-STORAGE-RH PTD BLK | 1 | $54.95 | |
| 36 | 2516-855 | SUPPORT-SIDE-STORAGE-LH PTD BLK | 1 | $54.95 | |
| 37 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 38 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 39 | 4506-528 | BOX,SIDE STORAGE-RH-SERV ASSY | 1 | $371.95 | |
| 39 | 4506-527 | BOX,SIDE STORAGE-LH-SERV ASSY | 1 | $371.95 | |
| 40 | 2516-858 | PLATE,FACE-SIDE STORAGE-PTD BLK | 1 | $42.95 | |
| 41 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 42 | 2416-504 | SEAL,DOOR-SIDE STORAGE | 1 | $3.57 | |
| 43 | 2516-853 | DOOR,SIDE STORAGE-PTD BLACK | 1 | $42.95 | |
| 44 | 1423-035 | LATCH,SLIDE | 1 | $16.49 | |
| 45 | 1423-037 | HINGE,FRICTION | 1 | $23.39 | |
| 47 | 1423-036 | SPACER, HINGE | 1 | $3.30 |
