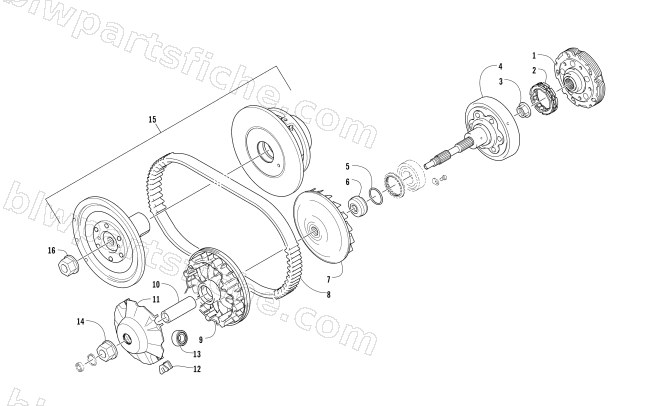

2014 Arctic Cat PROWLER 500 HDX XT — CLUTCH AND DRIVE BELT ASSEMBLY
2014 PROWLER 500 HDX XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0823-328 | R/B 0823-197 | 1 | $398.95 | |
| 2 | 0823-198 | CLUTCH,ONE WAY | 1 | $212.95 | |
| 3 | 0827-050 | NUT,HFH CCW (M16 X 1.5) | 1 | $12.35 | |
| 4 | 0823-338 | GEAR ASSY,PRIMARY DRIVE(HOUSING,CLUTCH) | 1 | $227.95 | |
| 5 | 0830-187 | O-RING 40 X 2.5 | 1 | $2.61 | |
| 6 | 0823-058 | SPACER, FIXED DRIVE FACE | 1 | $33.95 | |
| 7 | 0823-313 | R/B 3313-895 | 1 | $79.95 | |
| 8 | 0823-228 | V-BELT | 1 | $260.95 | |
| 9 | 0823-324 | FACE COMP, MOVABLE | 1 | $140.95 | |
| 10 | 0823-206 | SPACER,MOVABLE DRIVE FACE | 1 | $30.95 | |
| 11 | 0823-213 | PLATE,MOVABLE DRIVE FACE | 1 | $30.95 | |
| 12 | 0823-214 | DAMPER,MOVABLE DRIVE FACE | 1 | $20.63 | |
| 13 | 3306-843 | ROLLER COMP WEIGHT 15g (GREEN) | 1 | $6.89 | |
| 14 | 3323-165 | NUT FLANGE 16mm Z&Y | 1 | $12.35 | |
| 15 | 0823-350 | R/B 3308-004 | 1 | $609.95 | |
| 16 | 0827-058 | NUT,FLANGE 16MM,DRIVE-SHAFT | 1 | $3.02 |
