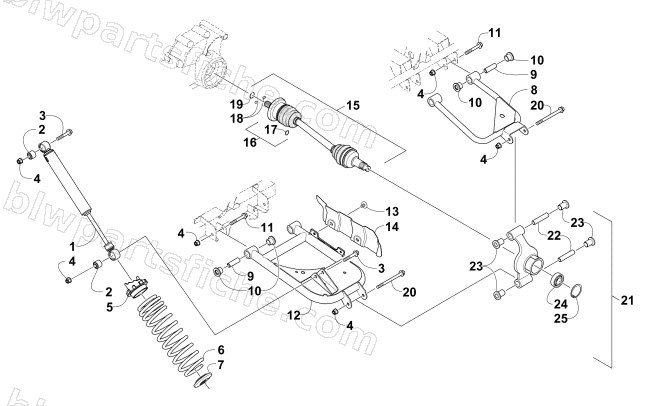

REAR SUSPENSION ASSEMBLY
2014 PROWLER 500 HDX LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0404-387 | SHOCK ABSORBER-REAR (2014 HDX 500) | 1 | $136.95 | |
| 2 | 0403-463 | BUSHING, DOUBLE BONDED | 1 | $20.95 | |
| 3 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 4 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 5 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 6 | 0504-845 | SPRING,COIL-REAR-BLACK | 1 | $102.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 8 | 0504-872 | A-ARM,REAR-UPPER-RH-ASSY | 1 | $108.95 | |
| 8 | 0504-873 | A-ARM,REAR UPPER-LH - ASSY | 1 | $108.95 | |
| 9 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 10 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 11 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 12 | 0504-592 | A-ARM,REAR LOWER RH-BLACK-ASSY | 1 | $187.95 | |
| 12 | 0504-593 | A-ARM,REAR LOWER LH-BLK ASSY | 1 | $187.95 | |
| 13 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 14 | 1406-068 | GUARD,BOOT-REAR-RH (BLACK) | 1 | $37.95 | |
| 14 | 1406-069 | GUARD,BOOT-REAR-LH (BLACK) | 1 | $37.95 | |
| 15 | 1436-411 | KIT,HALFSHAFT REMOVAL | 1 | $425.95 | |
| 16 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 17 | 1441-988 | CIRCLIP,HALFSHAFT-INTERNAL | 1 | $1.78 | |
| 18 | 1402-884 | PIN,TRANSFER,LONG-COUPLER AXLE | 1 | $1.64 | |
| 19 | 1402-890 | CIRCLIP,25MM | 1 | $5.09 | |
| 20 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 21 | 0504-613 | KNUCKLE,FORGED STEEL-REAR-ASSY | 1 | $299.95 | |
| 22 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 23 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 24 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 25 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
