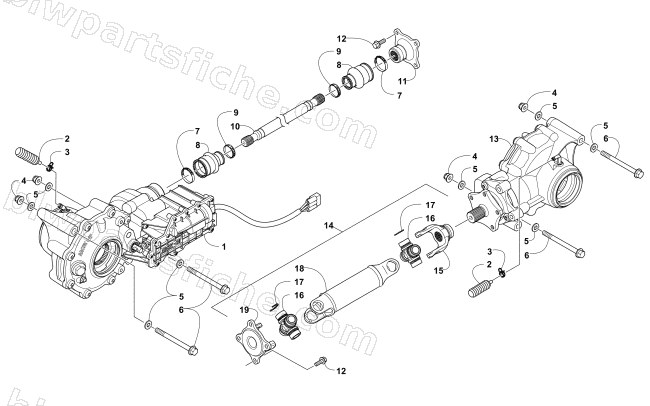

DRIVE TRAIN ASSEMBLY
2014 PROWLER 500 HDX LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-111 | GEARCASE, FRONT-ASSY (4.0 ELEC LOCK) | 1 | $2,863.95 | |
| 2 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 3 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 4 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 5 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 6 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 7 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 8 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 9 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 10 | 2402-135 | SHAFT,PROPELLER-FRONT | 1 | $196.95 | |
| 11 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 12 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 2502-053 | GEARCASE,REAR-4.0-ASSEMBLY | 1 | $1,275.95 | |
| 14 | 1502-743 | DRIVESHAFT,REAR-ASSY | 1 | $327.95 | |
| 15 | 1402-567 | YOKE,SLIP (25MM) | 1 | $71.95 | |
| 16 | 0402-944 | CROSS, UNIVERSAL (25mm) - SET | 1 | $30.95 | |
| 18 | 1502-736 | DRIVESHAFT,REAR-PTD BLACK | 1 | $135.95 | |
| 19 | 1402-689 | YOKE,FLANGE | 1 | $71.95 |
