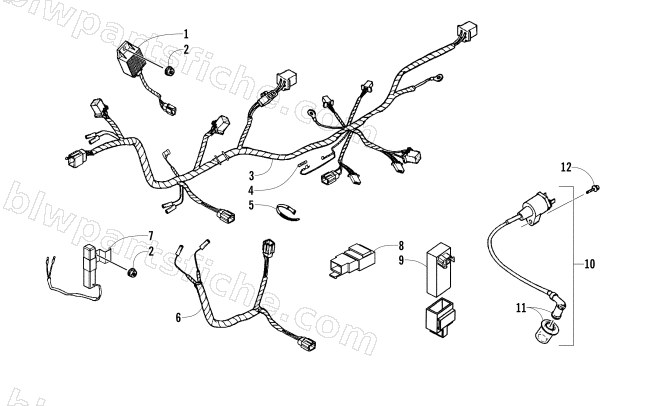

2014 Arctic Cat 90 2X4 UTILITY — ELECTRICAL AND WIRING HARNESS ASSEMBLY
2014 90 2X4 UTILITY
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-132 | REG REC COMP | 1 | $58.95 | |
| 2 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 3 | 3305-860 | HARNESS,MAIN UTILITY | 1 | $212.95 | |
| 4 | 3303-399 | FUSE A7 | 1 | $4.95 | |
| 5 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 6 | 3306-002 | SUB CORD | 1 | $6.47 | |
| 7 | 3303-142 | RESISTOR COMP | 1 | $33.95 | |
| 8 | 3303-143 | RELAY COMP START **(2) C.2001.10.09 | 1 | $45.95 | |
| 9 | 3305-861 | UNIT ASSY CDI | 1 | $324.95 | |
| 10 | 3303-125 | COIL ASSY IGN | 1 | $42.95 | |
| 11 | 3303-126 | CAP ASSY NOISE SUPPRESOR **(0) C.00.09. | 1 | $16.49 | |
| 12 | 3303-252 | BOLT FLANGE 5*22 **GK8 C.98.03.19. | 1 | $0.81 |
