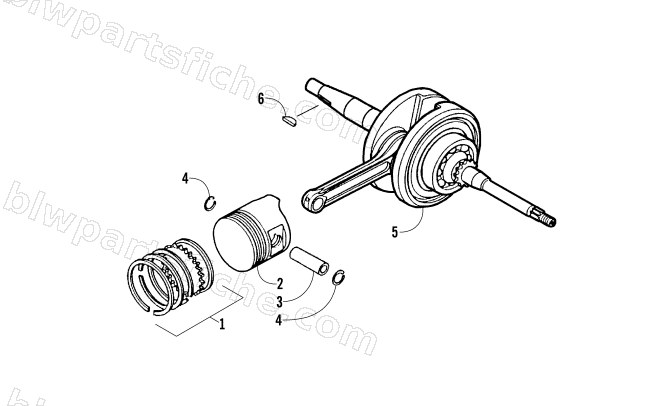

PISTON AND CRANKSHAFT ASSEMBLY

2014 90 2X4 DVX

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3303-024	RING SET PISTON	1	$58.95
2	3303-025	PISTON	1	$58.95
3	3303-026	PIN PISTON	1	$17.87
4	3303-027	CLIP PISTON PIN **0000 C.97.09.18.	1	$1.92
5	3305-443	CRANK SHAFT COMP	1	$398.95
6	3303-290	KEY WOODRUFF **0000-M1 C.99.07.07.	1	$2.61
