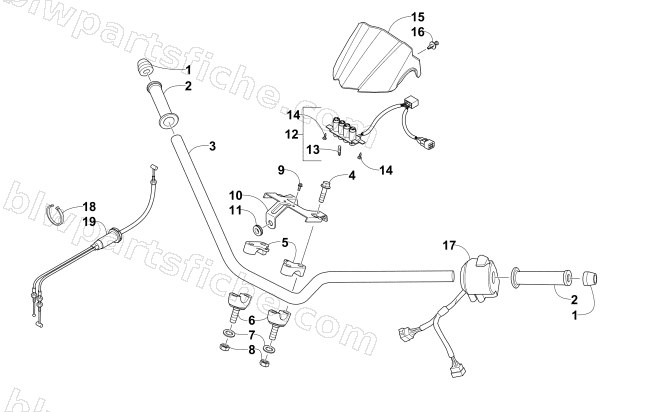

HANDLEBAR AND CONTROL ASSEMBLY
2014 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-196 | END STRG HANDLE **9110 C.97.02.01 | 1 | $2.33 | |
| 2 | 3305-905 | GRIP,HANDLE-4040 SPEC | 1 | $13.73 | |
| 3 | 3303-434 | HANDLE PIPE STRG | 1 | $54.95 | |
| 4 | 3303-398 | R/B 3307-113 | 1 | $1.95 | |
| 5 | 3303-197 | HOLDER R HANDLE PIPE | 1 | $10.97 | |
| 5 | 3303-198 | HOLDER L HANDLE PIPE | 1 | $10.97 | |
| 6 | 3303-199 | HOLDER UNDER HANDLE PIPE | 1 | $17.87 | |
| 7 | 3304-136 | WASHER PLAIN 10MM | 1 | $0.81 | |
| 8 | 3306-219 | NUT U 10MM (GOLDEN) | 1 | $2.61 | |
| 9 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 10 | 3305-575 | STAY HANDLE COVER | 1 | $16.49 | |
| 11 | 3303-239 | RUBBER TAIL LIGHT | 1 | $1.64 | |
| 12 | 3305-833 | LIGHTS,INDICATOR COMP | 1 | $47.95 | |
| 13 | 3304-284 | BULB WEDGE BASE T5 | 1 | $2.75 | |
| 14 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 15 | 3303-436 | COVER HANDLE (BLACK) | 1 | $17.87 | |
| 16 | 3303-592 | CLIP MUDGUARD | 1 | $2.33 | |
| 17 | 3305-516 | SW ASSY LH HANDLE COMP | 1 | $187.95 | |
| 18 | 3303-289 | BAND OIL HANDLE | 1 | $1.95 | |
| 19 | 1502-096 | THROTTLE CABLE/CAP-ASSEMBLY | 1 | $50.95 |
