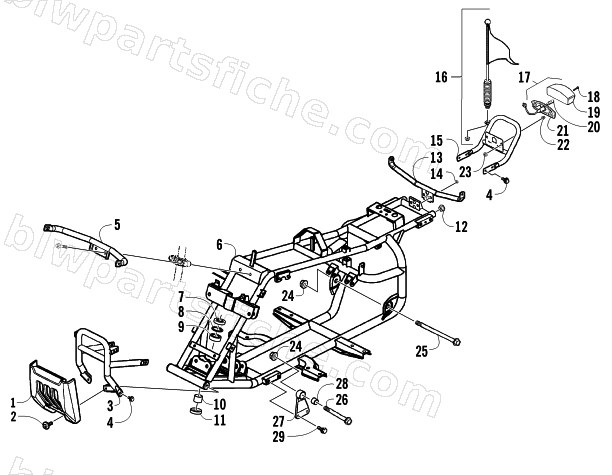

FRAME AND RELATED PARTS ASSEMBLY
2014 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-140 | COVER,FRONT BUMPER (MED GRAY) | 1 | $37.95 | |
| 2 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 3 | 3306-118 | PIPE COMP FR BUMPER (SILVER) | 1 | $112.95 | |
| 4 | 3304-544 | BOLT FLANGE 8*12 | 1 | $1.78 | |
| 5 | 3305-511 | STAY FRONT COVER | 1 | $20.63 | |
| 6 | 3305-864 | BODY COMP FRAME | 1 | $920.95 | |
| 7 | 3303-295 | OIL SEAL 18*32*7 | 1 | $2.61 | |
| 8 | 3303-347 | CIR CLIP IN 32 | 1 | $2.61 | |
| 9 | 3303-392 | BEARING BALL RADIAL 6002 | 1 | $17.87 | |
| 10 | 3303-445 | COLLAR FR DIST | 1 | $6.34 | |
| 11 | 3303-298 | OIL SEAL 22*35*7 | 1 | $3.02 | |
| 13 | 3305-514 | STAY REAR FENDER | 1 | $26.95 | |
| 14 | 3304-668 | NUT FLANGE 8MM | 1 | $0.81 | |
| 15 | 3305-512 | GRIP ASSY REAR | 1 | $140.95 | |
| 16 | 3305-308 | FLAG ASSY | 1 | $54.95 | |
| 17 | 3303-420 | LIGHT ASSY TAIL | 1 | $74.95 | |
| 18 | 3304-537 | TAPPING SCREW M4X35L | 1 | $2.33 | |
| 19 | 3304-283 | LENS COMP TAIL LIGHT | 1 | $47.95 | |
| 20 | 3303-849 | BULB TAIL & STOP 12V21W/5W | 1 | $12.35 | |
| 21 | 3303-422 | BASE COMP TAIL LIGHT | 1 | $47.95 | |
| 22 | 3303-226 | COLLAR FR FENDER | 1 | $1.64 | |
| 23 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 24 | 3304-031 | NUT U 10MM | 1 | $2.61 | |
| 25 | 3323-188 | SCREW,CAP HFH M10X1.25X95 | 1 | $3.30 | |
| 26 | 3304-548 | BOLT FLANGE 10*70 | 1 | $3.30 | |
| 27 | 3303-183 | BRKT R ENG HANGER | 1 | $20.63 | |
| 27 | 3303-184 | BRKT L ENG HANGER | 1 | $20.63 | |
| 28 | 3304-542 | RUBBER BUSHING ENGINE HANGER | 1 | $6.89 | |
| 29 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 |
