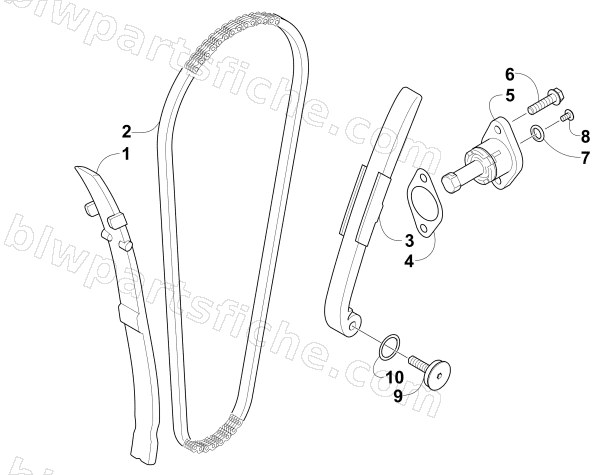

CAM CHAIN ASSEMBLY
2014 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3303-037 | GUIDE COMP CAM CHAIN | 1 | $24.77 | |
| 2 | 3303-030 | CHAIN CAM | 1 | $90.95 | |
| 3 | 3303-034 | TENSIONER CAM CHAIN **(0) C.2000.11.13 | 1 | $42.95 | |
| 4 | 3303-035 | GASKET TENSIONER LIFTER | 1 | $3.44 | |
| 5 | 3307-102 | LIFTER ASSY TENSIONER | 1 | $42.95 | |
| 6 | 3304-002 | BOLT FLANGE SHF 6*22 | 1 | $0.81 | |
| 7 | 3304-100 | O-RING 1.5*9.5 | 1 | $1.78 | |
| 8 | 3303-244 | SCREW PAN 6*6 **9000 C.97.07.26. | 1 | $0.81 | |
| 9 | 3303-036 | PIVOT CAM CHAIN TENSIONER | 1 | $2.95 | |
| 10 | 3303-301 | O-RING 15.2*1.5 **0030 C.97.07.26. | 1 | $1.37 |
