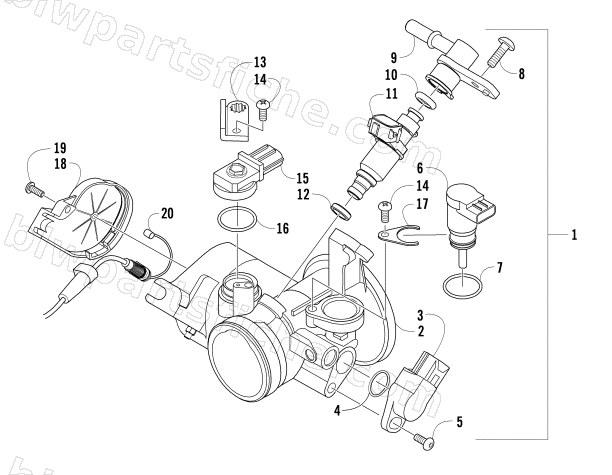

THROTTLE BODY ASSEMBLY
2014 700 MUD PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-753 | THROTTLE BODY-ASSY | 1 | $743.95 | |
| 3 | 0430-072 | SENSOR,THROTTLE POSITION | 1 | $144.95 | |
| 4 | 5507-234 | O-RING,TPS | 1 | $1.37 | |
| 5 | 5507-231 | SCREW,TPS | 1 | $1.78 | |
| 6 | 0430-074 | VALVE,ISC | 1 | $252.95 | |
| 7 | 5507-233 | O-RING,ISC | 1 | $3.44 | |
| 8 | 5507-238 | SCREW,FUEL RAIL-W/WASHER | 1 | $3.02 | |
| 9 | 0470-687 | RAIL,FUEL-700 H1 | 1 | $74.95 | |
| 10 | 0470-767 | O-RING,FUEL INJECTOR | 1 | $3.44 | |
| 11 | 0470-762 | INJECTOR,FUEL | 1 | $169.95 | |
| 12 | 0470-768 | SEAL-RING,FUEL INJECTOR | 1 | $6.20 | |
| 13 | 5507-227 | BRACKET,MAP SENSOR | 1 | $13.73 | |
| 14 | 5507-117 | SCREW | 1 | $1.23 | |
| 15 | 0430-073 | SENSOR,MAP | 1 | $150.95 | |
| 16 | 5507-232 | O-RING,MAP SENSOR | 1 | $1.78 | |
| 17 | 5507-229 | PLATE,ISC | 1 | $2.88 | |
| 18 | 5507-223 | COVER,THROTTLE HOUSING-EFI | 1 | $26.95 | |
| 19 | 5507-037 | SCREW(TOP COVER) | 1 | $0.95 | |
| 20 | 0487-065 | CABLE,THROTTLE | 1 | $90.95 |
