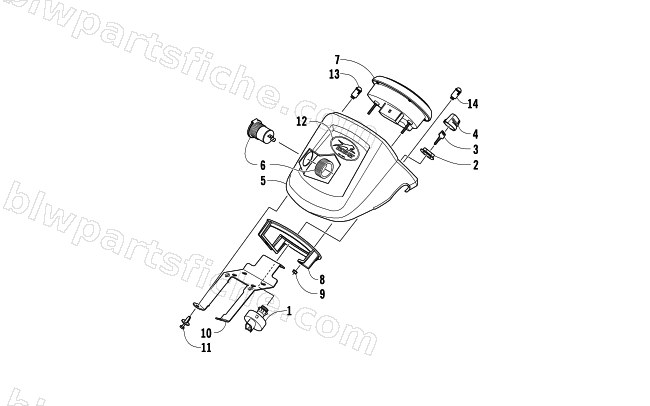

INSTRUMENT POD ASSEMBLY
2014 700 DIESEL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0430-090 | SWITCH,IGNITION-LIGHTS (09 ATV) | 1 | $66.95 | |
| 2 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 3 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 3 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 4 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 5 | 0505-616 | POD,INSTRUMENT ROUTED-BLACK | 1 | $100.95 | |
| 6 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 7 | 0520-150 | GAUGE,LCD (012 700 DIESEL) | 1 | $525.95 | |
| 8 | 0420-065 | CLAMP,PLASTIC-LCD GAUGE | 1 | $4.40 | |
| 9 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 10 | 2506-470 | BRKT,MTG GAUGE-PTD | 1 | $26.95 | |
| 11 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 12 | 9611-752 | DECAL,EMBLEM-GREEN | 1 | $43.95 | |
| 13 | 0420-075 | LIGHT,INDICATOR-BATTERY | 1 | $17.87 | |
| 14 | 0420-074 | LIGHT,INDICATOR-GLOW PLUG | 1 | $17.87 |
