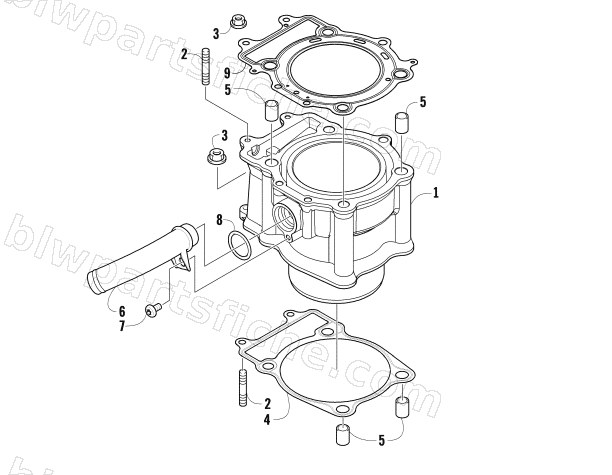

CYLINDER ASSEMBLY
2014 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0804-051 | CYLINDER,A550-09MA92-MACH (RB 0804-066) | 1 | $1,278.95 | |
| 2 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 3 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 4 | 0830-084 | GASKET,BASE | 1 | $13.73 | |
| 5 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 6 | 0804-047 | FITTING,COOLANT | 1 | $58.95 | |
| 7 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 | |
| 8 | 0830-007 | O-RING, 21.9 ID X 2.7 W | 1 | $0.68 | |
| 9 | 0830-097 | GASKET, CYLINDER HEAD, A550 | 1 | $100.95 |
