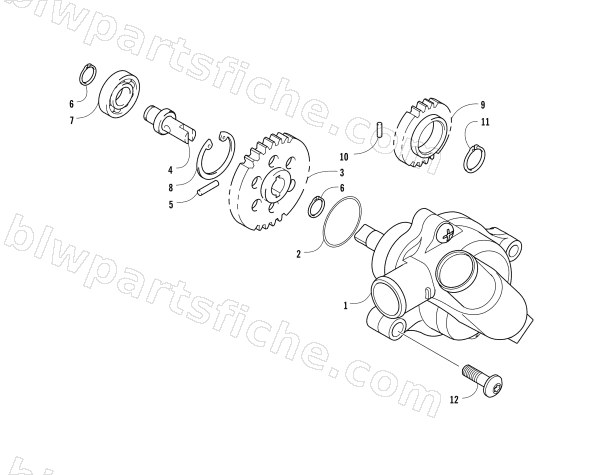

WATER PUMP ASSEMBLY
2014 550 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0813-001 | PUMP, WATER - ASSEMBLY | 1 | $260.95 | |
| 2 | 0830-029 | O-RING, 32.5 ID X 2 W | 1 | $1.64 | |
| 3 | 0813-004 | GEAR, DRIVEN | 1 | $135.95 | |
| 4 | 0813-005 | SHAFT, DRIVEN GEAR | 1 | $37.95 | |
| 5 | 0829-009 | PIN (4 X 16) | 1 | $2.06 | |
| 6 | 0831-002 | RING, EXTERNAL RETAINING - DSH-10 | 1 | $0.40 | |
| 7 | 0832-046 | BEARING,SHAFT | 1 | $16.49 | |
| 8 | 0831-004 | CIRCLIP, SHAFT BEARING | 1 | $3.44 | |
| 9 | 0811-003 | R/B 0811-038 | 1 | $72.95 | |
| 10 | 0829-007 | DOWEL, SOLID, 4 x 6 | 1 | $12.35 | |
| 11 | 0831-005 | RING, EXTERNAL RETAINING - DSH-22 | 1 | $1.37 | |
| 12 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 |
