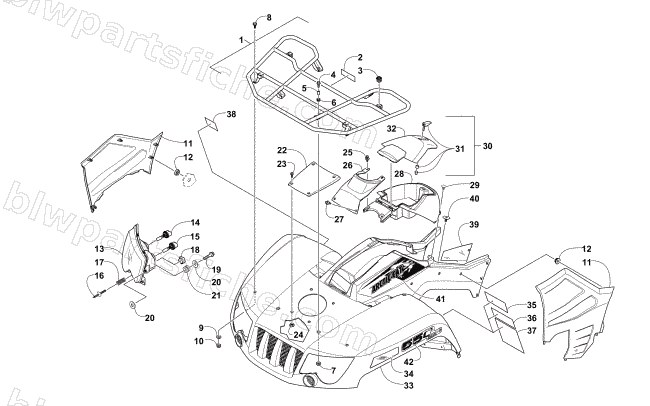

2014 Arctic Cat 550 LTD — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2014 550 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-646 | RACK,FRONT-ASSEMBLY (W/O FENCE) | 1 | $279.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 4 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 5 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 6 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 7 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 8 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 2406-380 | PANEL,SIDE-RH(550 H1) | 1 | $66.95 | |
| 11 | 2406-381 | PANEL,SIDE-LH(550 H1) | 1 | $66.95 | |
| 12 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 13 | 0609-852 | HEADLIGHT-ASSY-RH | 1 | $185.95 | |
| 13 | 0609-853 | HEADLIGHT-ASSY-LH | 1 | $185.95 | |
| 14 | 0409-073 | BULB,HEADLIGHT(899) | 1 | $33.95 | |
| 15 | 0409-045 | BULB, HEADLIGHT (880) | 1 | $34.95 | |
| 16 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 17 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 18 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 19 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 22 | 5506-005 | COVER,RADIATOR-VIBE MET RED-PTD | 1 | $66.95 | |
| 22 | 4506-378 | COVER,RADIATOR-MATTE BLK-PTD | 1 | $51.95 | |
| 22 | 5506-291 | COVER,RADIATOR-TEAM ARCTIC GREEN-PTD | 1 | $45.95 | |
| 23 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 24 | 0423-997 | NUT,T W/TEETH-M6 | 1 | $0.68 | |
| 25 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 26 | 5506-008 | COVER,STEERING POST-GLOSS BLACK-PTD | 1 | $69.95 | |
| 26 | 4506-379 | COVER,POST STEERING-MATTE BLACK-PTD | 1 | $41.95 | |
| 27 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 28 | 5506-010 | BOX,STORAGE-GLOSS BLACK-PTD | 1 | $114.95 | |
| 28 | 4506-380 | BOX,STORAGE-MATTE BLACK-PTD | 1 | $160.95 | |
| 29 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 30 | 2506-235 | COVER,STORAGE BOX-W/LATCH | 1 | $58.95 | |
| 31 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 32 | 1406-862 | COVER,STORAGE BOX | 1 | $57.95 | |
| 33 | 4506-990 | FENDER,FRONT VIBE MET RED-ASSY | 1 | $1,169.95 | |
| 33 | 2516-421 | FENDER,FRONT-A. T. CAMO-ASSY | 1 | $2,086.95 | |
| 33 | 5506-289 | FENDER,FRONT-TEAM ARCTIC GREEN-ASSY | 1 | $1,169.95 | |
| 34 | 1411-078 | REFLECTOR,FRONT-RH | 1 | $5.37 | |
| 34 | 1411-079 | REFLECTOR,FRONT-LH | 1 | $5.37 | |
| 35 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 36 | 1411-804 | DECAL,WARNING-AGE (16) | 1 | $4.95 | |
| 37 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 38 | 4411-818 | R/B 6411-412 | 1 | $1.59 | |
| 39 | 0412-394 | SHIELD,HEAT | 1 | $3.16 | |
| 40 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 41 | 3411-516 | DECAL,SIDE-RH-VIBRANT RED (B-BODY) | 1 | $42.95 | |
| 41 | 3411-517 | DECAL,SIDE-LH-VIBRANT RED (B-BODY) | 1 | $42.95 | |
| 41 | 3411-498 | DECAL,SIDE-RH-CAMO (B-BODY) | 1 | $50.95 | |
| 41 | 3411-499 | DECAL,SIDE-LH-CAMO (B-BODY) | 1 | $50.95 | |
| 41 | 3411-588 | DECAL,SIDE-RH-TEAM AC GREEN (B-BODY) | 1 | $42.95 | |
| 41 | 3411-589 | DECAL,SIDE-LH-TEAM AC GREEN (B-BODY) | 1 | $42.95 | |
| 42 | 3411-515 | DECAL,EFI-550-VIBRANT RED | 1 | $4.95 | |
| 42 | 3411-522 | DECAL,EFI-550-CAMO | 1 | $12.35 | |
| 42 | 3411-523 | DECAL,EFI-550-TEAM ARCTIC GREEN | 1 | $4.95 |
