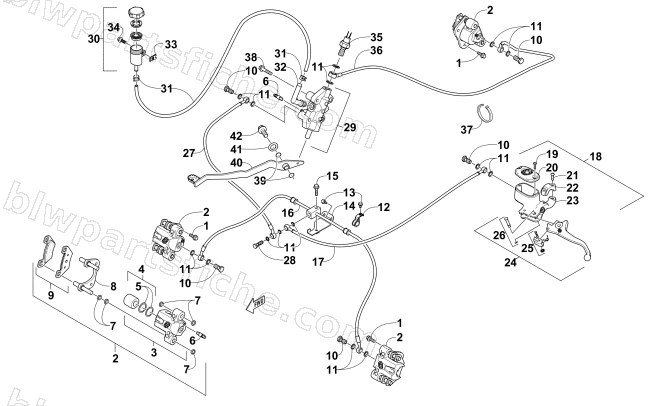

HYDRAULIC BRAKE ASSEMBLY
2014 400 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-785 | BOLT FLANGE 8*20 | 1 | $3.02 | |
| 2 | 3323-230 | CALIPER,BRAKE 1.25"-RH | 1 | $405.95 | |
| 2 | 3323-231 | CALIPER,BRAKE 1.25"-LH | 1 | $405.95 | |
| 3 | 1436-160 | KIT-HOUSING,PISTONS,SEALS,BLEADER-RH | 1 | $266.95 | |
| 3 | 1436-161 | KIT-HOUSING,PISTONS,SEALS,BLEADER-LH | 1 | $268.95 | |
| 4 | 0502-606 | SET,PISTONS/SEALS | 1 | $90.95 | |
| 6 | 0502-609 | BLEEDER,CALIPER (FC) | 1 | $26.95 | |
| 7 | 0502-608 | GUIDE,O-RINGS-CALIPER (FC) | 1 | $30.95 | |
| 8 | 0502-605 | BRACKET,ASSEMBLY | 1 | $124.95 | |
| 9 | 1436-420 | KIT-PAD,BRAKE-SET | 1 | $62.95 | |
| 10 | 3303-257 | R/B 3307-067 | 1 | $5.95 | |
| 11 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 12 | 3303-919 | CLAMP FR BRK HOSE | 1 | $4.82 | |
| 13 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 14 | 3313-523 | BRACKET,BRAKE HOSE JUNCTION | 1 | $5.78 | |
| 15 | 3305-789 | BOLT FLANGE 6*30 (G) | 1 | $1.09 | |
| 16 | 3313-750 | ASSEMBLY,BRAKE HOSE(JUNCTION) | 1 | $163.95 | |
| 17 | 3313-422 | HOSE,BRAKE(MC-JUNCTION) | 1 | $108.95 | |
| 18 | 3313-316 | CYLINDER,MASTER BRAKE-ASSEMBLY-BLK | 1 | $256.95 | |
| 19 | 0502-566 | KIT, RESERVOIR COVER SCREWS | 1 | $6.47 | |
| 20 | 0502-868 | RESERVOIR COVER SUB-ASSEMBLY KIT | 1 | $86.95 | |
| 21 | 0502-568 | KIT, CLAMP SCREWS | 1 | $20.63 | |
| 22 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 23 | 0502-704 | KIT,REBUILD MASTER CYLINDER (HAYES BLK) | 1 | $192.95 | |
| 24 | 1502-904 | KIT,LEVER AND PARK LEVER SUB-ASSY | 1 | $118.95 | |
| 25 | 1502-905 | KIT,PARK LEVER SUB-ASSY | 1 | $20.63 | |
| 26 | 0502-580 | KIT,SNAP RING | 1 | $20.63 | |
| 27 | 3313-423 | HOSE,BRAKE(JUNCTION-DIRM) | 1 | $122.95 | |
| 28 | 3304-674 | OIL BOLT 10*33 | 1 | $13.73 | |
| 29 | 3313-478 | ASSY,DIRMC 5/8" BORE,45MM MOUNT,W/R RESV | 1 | $264.95 | |
| 30 | 1502-141 | REMOTE RESERVOIRSUBASSY& HSECLIP DIRMCII | 1 | $54.95 | |
| 31 | 3313-489 | HOSE,REMOTE RES., W/CLIPS, DIRMC II (13. | 1 | $50.95 | |
| 32 | 1502-296 | HOSE ADAPTER SPOUT,90DEG-GROMMET SEAL | 1 | $24.77 | |
| 33 | 3304-061 | NUT CLIP 5MM | 1 | $2.33 | |
| 34 | 3306-146 | BOLT-WASH 5*22 | 1 | $0.81 | |
| 35 | 3313-820 | SWITCH-BRAKE PRESSURE-BANJO | 1 | $148.95 | |
| 36 | 3313-315 | HOSE,BRAKE-SECONDARY | 1 | $82.95 | |
| 37 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 38 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 39 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 40 | 3313-156 | LEVER,BRAKE-BLACK | 1 | $58.95 | |
| 41 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 42 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 |
