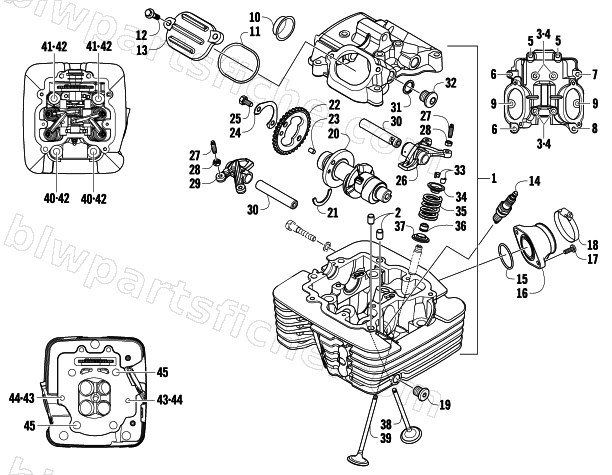

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY
2014 400 CR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0808-012 | HEAD, CYLINDER - ASSEMBLY | 1 | $920.95 | |
| 2 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 3 | 0826-115 | SCREW,CAP HFH M#X#X# | 1 | $1.23 | |
| 4 | 0830-155 | SEAL,FASTENER | 1 | $3.16 | |
| 5 | 3304-918 | BOLT FLANGE SH M6x1.0x110 | 1 | $1.50 | |
| 6 | 3303-386 | BOLT FLANGE SH 6*35 | 1 | $2.06 | |
| 7 | 3307-053 | BOLT FLANGE SH 6*40 | 1 | $2.75 | |
| 8 | 0826-136 | BOLT,M6X1.0X30 | 1 | $0.85 | |
| 9 | 3303-384 | BOLT FLANGE SH 6*25 | 1 | $0.81 | |
| 10 | 3306-787 | PLUG HEAD | 1 | $13.73 | |
| 11 | 0830-139 | ORING,INSPECTION COVER | 1 | $6.20 | |
| 12 | 3303-383 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 13 | 0808-111 | CAP,INSPECTION COVER | 1 | $20.63 | |
| 14 | 0217-705 | SPARK PLUG(NGK CR8E) | 1 | $10.97 | |
| 15 | 3323-145 | O-RING | 1 | $4.40 | |
| 16 | 3313-843 | MANIFOLD ASSY CARB | 1 | $50.95 | |
| 17 | 3304-189 | BOLT FLANGE SH 6*20 | 1 | $0.81 | |
| 18 | 0423-380 | CLAMP,HOSE-WORM-50-70mm x 9mm BLK | 1 | $9.59 | |
| 19 | 3303-656 | BOLT SEALING 12MM | 1 | $4.13 | |
| 20 | 0809-287 | SHAFT COMP CAM | 1 | $231.95 | |
| 21 | 0809-165 | C-RING,CAMSHAFT | 1 | $2.61 | |
| 22 | 0809-166 | SPROCKET,CAM | 1 | $54.95 | |
| 23 | 0829-036 | DOWEL,ALIGNMENT,M5 X 8 | 1 | $2.95 | |
| 24 | 0828-086 | WASHER,FASTENER-LOCK | 1 | $2.06 | |
| 25 | 0826-154 | BOLT HEX 6X12 | 1 | $1.23 | |
| 26 | 0809-145 | ARM,VALVE ROCKER,INTAKE-MACHINING | 1 | $108.95 | |
| 27 | 3304-007 | SCREW TAPPET ADJUSTING | 1 | $3.57 | |
| 28 | 3304-026 | NUT TAPPET ADJUSTING | 1 | $1.23 | |
| 29 | 0809-149 | ARM,VALVE ROCKER,EXHAUST-MACHINING | 1 | $108.95 | |
| 30 | 0809-151 | SHAFT,ROCKER ARM | 1 | $26.95 | |
| 31 | 0830-143 | WASHER,COMPRESSION 14 X 19 X 1.35 | 1 | $13.73 | |
| 32 | 0831-053 | PLUG,ROCKER ARM | 1 | $16.49 | |
| 33 | 3303-044 | COTTER VALVE | 1 | $10.97 | |
| 34 | 0809-142 | RETAINER, SPRING | 1 | $16.49 | |
| 35 | 0809-140 | SPRING,VALVE | 1 | $10.97 | |
| 36 | 0809-190 | SEAL,VALVE STEM | 1 | $12.35 | |
| 37 | 0809-141 | SEAT,VALVE SPRING | 1 | $8.21 | |
| 38 | 0809-188 | VALVE,INTAKE | 1 | $58.95 | |
| 39 | 0809-189 | VALVE,EXHAUST | 1 | $102.95 | |
| 40 | 0826-062 | BOLT,ACS-HFH M10 ( ) | 1 | $17.87 | |
| 41 | 0826-061 | BOLT,ACS-HFH M10 ( ) | 1 | $17.87 | |
| 42 | 0828-044 | WASHER, CYLINDER HEAD NUT | 1 | $1.23 | |
| 43 | 0827-019 | SCREW, STUD | 1 | $3.30 | |
| 44 | 3303-332 | NUT FLANGE 8MM | 1 | $0.81 | |
| 45 | 0829-013 | DOWEL,SLEEVE,DIA 13x22 | 1 | $3.16 |
