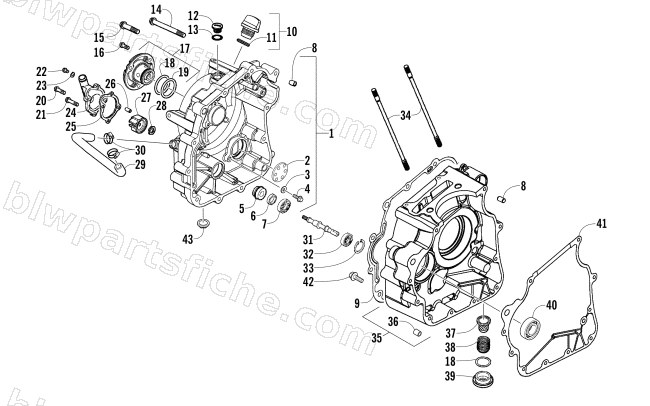

RIGHT CRANKCASE AND COVER ASSEMBLY
2014 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-626 | COVER COMP R CRANK CASE | 1 | $461.95 | |
| 2 | 3303-696 | FINDER OIL LEVEL | 1 | $20.63 | |
| 4 | 3304-005 | BOLT SPECIAL 6*10 96600-08010 N.C. | 1 | $1.50 | |
| 5 | 3303-751 | SEAL MECHANICAL | 1 | $25.95 | |
| 6 | 3304-078 | OIL SEAL 12*20*4 | 1 | $2.33 | |
| 7 | 3304-068 | BEARING BALL RADIAL 6901 12*24*6 | 1 | $37.95 | |
| 8 | 3303-342 | PIN DOWEL 10*16 | 1 | $1.64 | |
| 9 | 3303-641 | GASKET R COVER | 1 | $17.87 | |
| 10 | 3303-695 | GAUGE OIL LEVEL ASSY | 1 | $20.63 | |
| 11 | 3304-102 | O-RING 18*3 | 1 | $1.78 | |
| 12 | 3304-012 | CAP ACG A.C.G. | 1 | $3.30 | |
| 13 | 3304-099 | O-RING 13.8*2.5 | 1 | $2.33 | |
| 14 | 3304-192 | BOLT FLANGE 6*125 | 1 | $1.50 | |
| 15 | 3303-387 | BOLT FLANGE SH 6*45 | 1 | $3.95 | |
| 16 | 3303-382 | BOLT FLANGE 6*16MM | 1 | $0.81 | |
| 17 | 3304-013 | CAP ASSY R COVER | 1 | $37.95 | |
| 18 | 3304-096 | O-RING 30.8MM | 1 | $1.78 | |
| 19 | 3304-098 | O RING 27.4*2.1 | 1 | $2.33 | |
| 20 | 3303-619 | BOLT FLANGE SH 6*22 | 1 | $0.81 | |
| 21 | 3303-385 | BOLT FLANGE SH 6*28 | 1 | $0.81 | |
| 22 | 3304-186 | BOLT FLANGE SH 6*10 | 1 | $0.95 | |
| 23 | 3304-049 | WASHER A 6MM | 1 | $0.81 | |
| 24 | 3303-752 | COVER WATER PUMP | 1 | $26.95 | |
| 25 | 3303-753 | GASKET WATER PUMP | 1 | $3.16 | |
| 26 | 3303-341 | PIN DOWEL 8*14 | 1 | $2.33 | |
| 27 | 3303-750 | IMPELLER WATER PUMP | 1 | $20.63 | |
| 28 | 3304-038 | WASHER 7.2*13*1.2 | 1 | $0.81 | |
| 29 | 3303-758 | HOSE B WATER | 1 | $13.73 | |
| 30 | 3304-165 | CLIP WATER HOSE | 1 | $3.71 | |
| 31 | 3303-754 | SHAFT WATER PUMP | 1 | $23.39 | |
| 32 | 3304-193 | BEARING BALL RADIAL 6000/10*26*8 | 1 | $17.87 | |
| 33 | 3304-148 | CIR CLIP INTERAL 26MM | 1 | $1.78 | |
| 34 | 3304-008 | BOLT STUD 8MM | 1 | $5.51 | |
| 35 | 3305-605 | CRANK CASE COMP R | 1 | $387.95 | |
| 36 | 3304-065 | CONE TYPE PLUG 6*7 | 1 | $1.37 | |
| 37 | 3303-691 | SCREEN OIL FILTER | 1 | $5.51 | |
| 38 | 3303-692 | SPG OIL FILTER SCREEN | 1 | $33.95 | |
| 39 | 3303-021 | HOLE CAP TAPPET ADJUSTING **9000 C.97.09 | 1 | $16.49 | |
| 40 | 3304-195 | BRG RADIAL BALL 6205 | 1 | $20.63 | |
| 41 | 3303-628 | GASKET CRANK CASE A | 1 | $20.63 | |
| 42 | 3304-191 | R/B 3307-062 | 1 | $0.65 | |
| 43 | 3304-052 | BOLT DRAIN PLUG SPECIAL | 1 | $3.02 |
