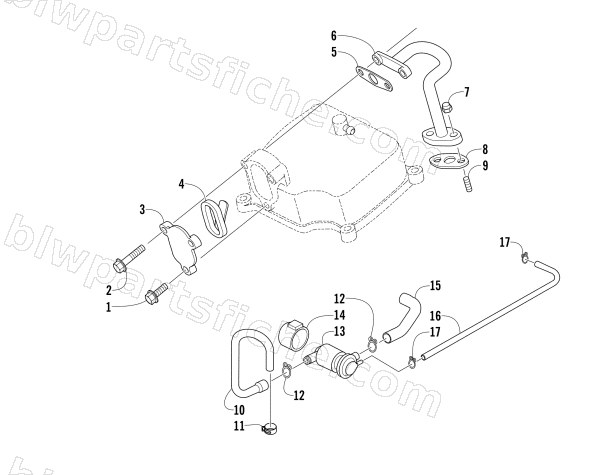

2014 Arctic Cat 300 DVX — REED VALVE ASSEMBLY
2014 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3305-401 | BOLT FLANGE 6*25 | 1 | $0.85 | |
| 2 | 3305-402 | R/B 3306-646 | 1 | $0.65 | |
| 3 | 3305-354 | COVER REED VALVE | 1 | $10.97 | |
| 4 | 3305-353 | REED VALVE COMP | 1 | $37.95 | |
| 5 | 3305-356 | GSKT A/I PIPE | 1 | $2.47 | |
| 6 | 3305-610 | PIPE COMP AIR | 1 | $45.95 | |
| 7 | 3304-030 | NUT HEX CAP 6MM | 1 | $2.06 | |
| 8 | 3303-732 | GASKET A/I PIPE | 1 | $2.33 | |
| 9 | 3304-114 | BOLT STUD 6*28 | 1 | $0.95 | |
| 10 | 3305-404 | DUST AICV-REED VALVE | 1 | $20.63 | |
| 11 | 3304-167 | CLAMP D18 TUBE | 1 | $3.57 | |
| 12 | 3303-712 | CLIP BREATHER TUBE | 1 | $2.33 | |
| 14 | 3305-355 | RUBBER AICV MOUNT | 1 | $3.95 | |
| 15 | 3304-824 | DUCT,AIR CV | 1 | $20.63 | |
| 16 | 3305-405 | TUBE ASSY VACUUM | 1 | $17.87 | |
| 17 | 3304-161 | CLIP B7 TUBE | 1 | $1.37 |
