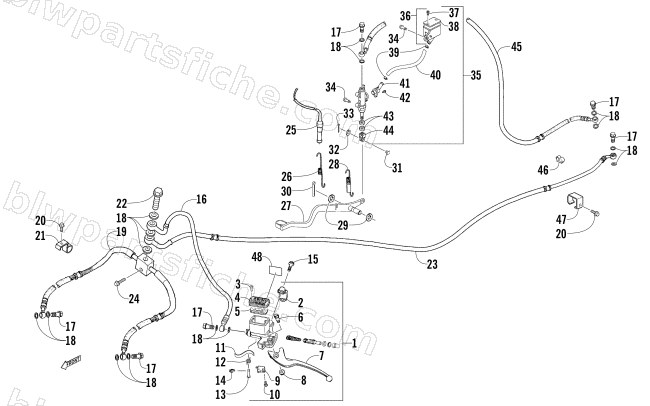

HYDRAULIC BRAKE ASSEMBLY
2014 300 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3304-676 | M/C SET RR | 1 | $244.95 | |
| 2 | 3305-983 | HOLDER M/C | 1 | $10.97 | |
| 3 | 3303-318 | SCREW FLAT 4*12 | 1 | $1.78 | |
| 4 | 3304-332 | CAP M/C | 1 | $10.97 | |
| 5 | 3303-925 | DIAPHRAGM | 1 | $64.95 | |
| 6 | 3304-017 | BOLT L STEERING HANDLE | 1 | $3.02 | |
| 7 | 3304-369 | LEVER L STRG HANDLE | 1 | $37.95 | |
| 8 | 3304-654 | NUT FLANGE 6MM | 1 | $1.23 | |
| 9 | 3303-141 | SW ASSY RR STOP | 1 | $20.63 | |
| 10 | 3303-321 | SCREW WASHER 4*12 | 1 | $0.81 | |
| 11 | 3304-442 | LEVER PARKING | 1 | $12.35 | |
| 12 | 3304-678 | SPRING RETURN | 1 | $2.33 | |
| 13 | 3304-679 | PIN | 1 | $2.33 | |
| 14 | 3304-680 | CLIP | 1 | $2.33 | |
| 15 | 3304-746 | BOLT FLANGE 6*22 (G) | 1 | $1.50 | |
| 16 | 3304-321 | HOSE ASSY C/P FR BRK | 1 | $126.95 | |
| 17 | 3303-257 | R/B 3307-067 | 1 | $5.95 | |
| 18 | 3303-284 | WASHER OIL BOLT **(1) C.98.06.01. | 1 | $1.23 | |
| 19 | 3305-681 | HOSE ASSY FR BRK | 1 | $239.95 | |
| 20 | 3304-553 | BOLT FLANGE 6*12 | 1 | $0.81 | |
| 21 | 3303-919 | CLAMP FR BRK HOSE | 1 | $4.82 | |
| 22 | 3304-674 | OIL BOLT 10*33 | 1 | $13.73 | |
| 23 | 3304-319 | HOSE ASSY COMBINE BRK | 1 | $203.95 | |
| 24 | 3304-176 | BOLT FLANGE 8*28 | 1 | $1.50 | |
| 25 | 3304-685 | REAR STOP SWITCH | 1 | $33.95 | |
| 26 | 3303-855 | SPRING STOP SW | 1 | $3.71 | |
| 27 | 3304-335 | PEDAL COMP RR BRAKE | 1 | $64.95 | |
| 28 | 3303-929 | SPG SET BRK PEDAL | 1 | $5.37 | |
| 29 | 3304-139 | WASHER PLAIN 14*26*2.3 | 1 | $1.50 | |
| 30 | 3304-143 | PIN SPLIT 2.5*30 | 1 | $1.37 | |
| 31 | 3303-927 | PIN COMP BRK ROD | 1 | $6.75 | |
| 32 | 3304-050 | WASHER 7*12 | 1 | $0.81 | |
| 33 | 3304-141 | PIN SPLIT 2.0*12 | 1 | $1.37 | |
| 34 | 3304-551 | BOLT FLANGE 6*22 | 1 | $0.81 | |
| 35 | 3304-306 | MASTER CYLINDER ASSY RR | 1 | $112.95 | |
| 36 | 3303-896 | BRAKE RESERVOIR | 1 | $37.95 | |
| 37 | 3304-119 | SCREW FLAT 4*40 | 1 | $2.33 | |
| 39 | 3303-895 | CLAMP M/C OIL HOSE | 1 | $1.64 | |
| 40 | 3304-308 | HOSE M/C | 1 | $20.63 | |
| 41 | 3304-307 | CONNECTOR | 1 | $6.75 | |
| 43 | 3304-128 | NUT HEX 8MM | 1 | $0.55 | |
| 44 | 3303-928 | JOINT BRK ROD | 1 | $20.63 | |
| 45 | 3304-299 | HOSE ASSY RR BRK | 1 | $140.95 | |
| 46 | 3304-675 | CLAMP TUBE | 1 | $1.64 | |
| 47 | 3303-891 | CLAMPER RR BRK HOSE | 1 | $4.82 | |
| 48 | 1411-865 | DECAL,WARNING-BRAKE LEVER LOCK | 1 | $3.30 |
