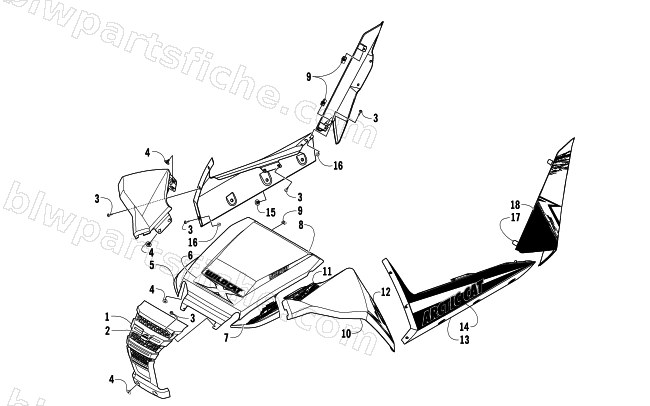

2013 Arctic Cat WILDCAT X — FRONT AND SIDE PANEL ASSEMBLIES
2013 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-685 | GRILLE,FRONT | 1 | $41.95 | |
| 2 | 2411-943 | DECAL,GRILL-FRONT | 1 | $15.11 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 4506-772 | HOOD,M.BLACK-PTD | 1 | $337.95 | |
| 6 | 3411-347 | DECAL,CREST-VR | 1 | $17.87 | |
| 6 | 3411-371 | DECAL,CREST-TAG | 1 | $17.87 | |
| 7 | 3411-348 | DECAL,HEADLIGHT-RH-VR | 1 | $12.35 | |
| 7 | 3411-349 | DECAL,HEADLIGHT-LH-VR | 1 | $12.35 | |
| 7 | 3411-372 | DECAL,HEADLIGHT-RH-TAG | 1 | $12.35 | |
| 7 | 3411-373 | DECAL,HEADLIGHT-LH-TAG | 1 | $12.35 | |
| 8 | 3411-350 | DECAL,HOOD-RH-VR | 1 | $4.95 | |
| 8 | 3411-351 | DECAL,HOOD-LH-VR | 1 | $4.95 | |
| 8 | 3411-374 | DECAL,HOOD-RH-TAG | 1 | $4.95 | |
| 8 | 3411-375 | DECAL,HOOD-LH-TAG | 1 | $4.95 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 4506-756 | PANEL,FENDER-FRT-RH M.BLACK-PTD | 1 | $212.95 | |
| 10 | 4506-757 | PANEL,FENDER-FRT-LH M.BLACK-PTD | 1 | $212.95 | |
| 11 | 3411-364 | DECAL,FENDER-FRONT UPR-RH-VR | 1 | $33.95 | |
| 11 | 3411-365 | DECAL,FENDER-FRONT UPR-LH-VR | 1 | $33.95 | |
| 11 | 3411-388 | DECAL,FENDER-FRONT UPR-RH-TAG | 1 | $17.87 | |
| 11 | 3411-389 | DECAL,FENDER-FRONT UPR-LH-TAG | 1 | $17.87 | |
| 12 | 3411-366 | DECAL,FENDER-FRONT LWR-RH-VR | 1 | $148.95 | |
| 12 | 3411-367 | DECAL,FENDER-FRONT LWR-LH-VR | 1 | $148.95 | |
| 12 | 3411-390 | DECAL,FENDER-FRONT LWR-RH-TAG | 1 | $66.95 | |
| 12 | 3411-391 | DECAL,FENDER-FRONT LWR-LH-TAG | 1 | $66.95 | |
| 13 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 13 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 14 | 3411-352 | DECAL,SIDE-LOWER-RH-VR | 1 | $50.95 | |
| 14 | 3411-353 | DECAL,SIDE-LOWER-LH-VR | 1 | $50.95 | |
| 14 | 3411-376 | DECAL,SIDE-LOWER-RH-TAG | 1 | $50.95 | |
| 14 | 3411-377 | DECAL,SIDE-LOWER-LH-TAG | 1 | $50.95 | |
| 15 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 17 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 | |
| 18 | 3411-358 | DECAL,SIDE-REAR-RH-VR | 1 | $42.95 | |
| 18 | 3411-359 | DECAL,SIDE-REAR-LH-VR | 1 | $42.95 | |
| 18 | 3411-382 | DECAL,SIDE-REAR-RH-TAG | 1 | $42.95 | |
| 18 | 3411-383 | DECAL,SIDE-REAR-LH-TAG | 1 | $42.95 |
