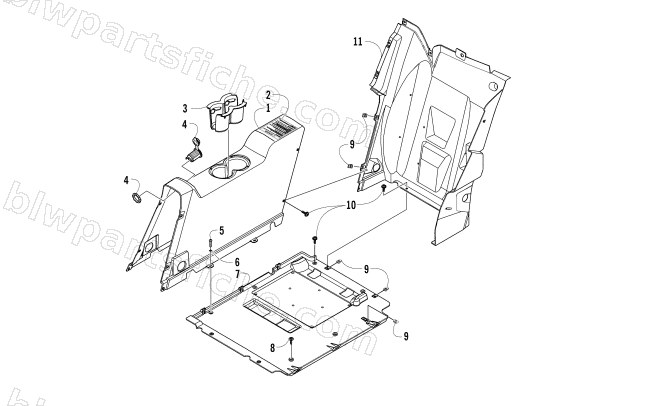

2013 Arctic Cat WILDCAT 4 — REAR CONSOLE AND FLOOR PANEL ASSEMBLY
2013 WILDCAT 4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-264 | CONSOLE,REAR-W/DECALS | 1 | $89.95 | |
| 2 | 3411-327 | DECAL,WARNING REAR PASSENGER-MID | 1 | $4.95 | |
| 3 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 6 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 7 | 4406-110 | PANEL,FLOOR REAR-RH | 1 | $100.95 | |
| 7 | 4406-111 | PANEL,FLOOR REAR -LH | 1 | $100.95 | |
| 8 | 1423-142 | SCREW,HH W/SPRING WASHER M6X1.0X30 | 1 | $1.64 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 4406-228 | PANEL,REAR SPLASH-RH | 1 | $82.95 | |
| 11 | 4406-229 | PANEL,SPLASH-REAR-LH | 1 | $82.95 |
