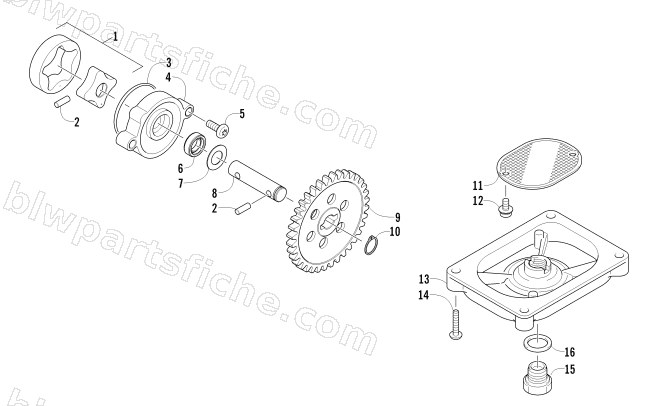

OIL PUMP ASSEMBLY
2013 WILDCAT 4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0812-041 | GEROTOR,SET-10MM | 1 | $30.95 | |
| 2 | 0829-009 | PIN (4 X 16) | 1 | $2.06 | |
| 3 | 0812-048 | O-RING,OIL PUMP-COVER | 1 | $3.30 | |
| 4 | 0812-040 | COVER,OIL PUMP-MACHINED | 1 | $37.95 | |
| 5 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 6 | 0812-047 | SEAL,SHAFT-OIL PUMP | 1 | $8.21 | |
| 7 | 0828-007 | SHIM, 10 x 18 x .57.8x.5 | 1 | $16.49 | |
| 8 | 0812-046 | SHAFT,OIL PUMP | 1 | $23.39 | |
| 9 | 0812-045 | GEAR,DRIVE-OIL PUMP | 1 | $160.95 | |
| 10 | 0831-002 | RING, EXTERNAL RETAINING - DSH-10 | 1 | $0.40 | |
| 11 | 0812-057 | STRAINER,OIL | 1 | $4.40 | |
| 12 | 0826-040 | SCREW,MACH-TSPH M5 X0.8X12 W/ WASHERS | 1 | $1.78 | |
| 13 | 0812-053 | CAP,OIL SUMP | 1 | $50.95 | |
| 15 | 0812-006 | PLUG, DRAIN MAGNETIC | 1 | $19.25 | |
| 16 | 0830-017 | GASKET, METAL, COMPRESSION | 1 | $5.09 |
