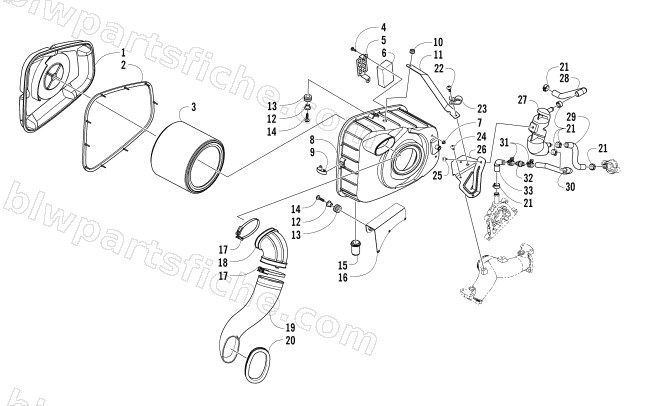

AIR INTAKE ASSEMBLY
2013 WILDCAT 4
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0470-936 | LID, AIR CLEANER | 1 | $30.95 | |
| 2 | 0470-937 | GASKET,AIR CLEANER | 1 | $20.63 | |
| 3 | 0470-942 | FILTER,AIR CLEANER-FOAM | 1 | $77.95 | |
| 4 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 | |
| 5 | 0470-946 | SCREEN,CRANK VENT | 1 | $26.95 | |
| 6 | 0470-891 | FILTER,CRANKCASE VENT | 1 | $3.16 | |
| 7 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 8 | 0570-347 | BOX,AIR CLEANER-ASSEMBLY | 1 | $85.95 | |
| 9 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 10 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 11 | 0470-977 | STRAP, AIR CLEANER | 1 | $30.95 | |
| 12 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 13 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 14 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 15 | 0470-947 | PLUG, AIR CLEANER DRAIN | 1 | $3.71 | |
| 16 | 0470-939 | MOUNT,AIR CLEANER | 1 | $24.77 | |
| 17 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 18 | 0470-940 | BOOT,AIR CLEANER | 1 | $30.95 | |
| 19 | 0470-938 | DUCT,AIR CLEANER | 1 | $41.95 | |
| 20 | 0470-945 | GROMMET, AIR INTAKE DUCT | 1 | $5.65 | |
| 21 | 0423-045 | CLAMP,HOSE-SPRING(.685"ID X.38") | 1 | $1.78 | |
| 22 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 23 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 24 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 25 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 26 | 0470-967 | MOUNT, FUEL HOSE | 1 | $26.95 | |
| 27 | 0470-857 | OIL SEPARATOR | 1 | $47.95 | |
| 28 | 0410-243 | HOSE,CRANK VENT | 1 | $20.63 | |
| 29 | 0410-258 | HOSE,CRANK VENT | 1 | $17.87 | |
| 30 | 0410-245 | HOSE,CRANK VENT | 1 | $17.87 | |
| 31 | 1623-281 | CLAMP,HOSE-SPRING (12W X 18) | 1 | $2.61 | |
| 32 | 0470-943 | VALVE, CHECK - CRANK VENT | 1 | $30.95 | |
| 33 | 0410-244 | HOSE,CRANK VENT | 1 | $12.35 |
