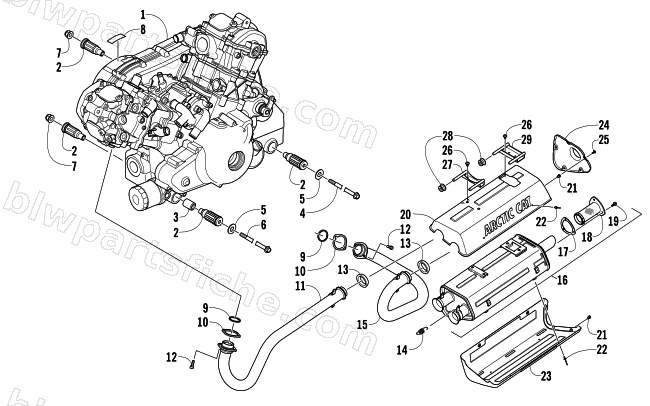

2013 Arctic Cat WILDCAT 1000 — ENGINE AND EXHAUST
2013 WILDCAT 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0800-113 | ENGINE,A950L H2 ASSY (S3) | 1 | $6,774.95 | |
| 2 | 0801-091 | MOUNT,RUBBER-ENGINE | 1 | $37.95 | |
| 3 | 0801-128 | SPACER,ENGINE MOUNT,L31 | 1 | $13.73 | |
| 4 | 0423-451 | SCREW,CAP-HFH M10X1.25X190 CL10.9 Z&Y | 1 | $5.95 | |
| 5 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 6 | 0423-734 | SCREW,CAP HFH M10-1.25X220 | 1 | $22.01 | |
| 7 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 8 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 9 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 10 | 0412-636 | SPACER,EXHAUST FLANGE | 1 | $10.97 | |
| 11 | 0512-588 | PIPE,EXHAUST-FRONT-COATED (RB: 0512-610) | 1 | $407.95 | |
| 12 | 1423-084 | SCREW,CAP-TSH M8X1.25X25 CL8.8 Z&C | 1 | $3.16 | |
| 13 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 14 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 15 | 0512-589 | R/B 0512-611 | 1 | $407.95 | |
| 16 | 0512-608 | MUFFLER-ASSEMBLY | 1 | $1,018.95 | |
| 17 | 0412-614 | GASKET,SPARK ARRESTER | 1 | $16.95 | |
| 18 | 0512-585 | SPARK ARRESTER-ASSEMBLY | 1 | $49.95 | |
| 19 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 20 | 0512-590 | SHIELD, UPPER - ASSEMBLY | 1 | $93.95 | |
| 21 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 22 | 8061-283 | RIVET,BLIND-1/8X1/4 | 1 | $0.40 | |
| 23 | 0512-591 | SHIELD, LOWER - ASSEMBLY | 1 | $128.95 | |
| 24 | 0412-591 | SHIELD,HEAT-MUFFLER-END CAP | 1 | $50.95 | |
| 25 | 1423-176 | SCREW,MACH-TSTRH M5X0.8X12 W/ PILOT Z&C | 1 | $1.09 | |
| 26 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 27 | 0412-553 | BRACKET,MUFFLER HANGER | 1 | $29.95 | |
| 28 | 0412-544 | GROMMET,EXHAUST HANGER | 1 | $3.30 | |
| 29 | 0412-641 | HANGER, MUFFLER | 1 | $29.95 |
