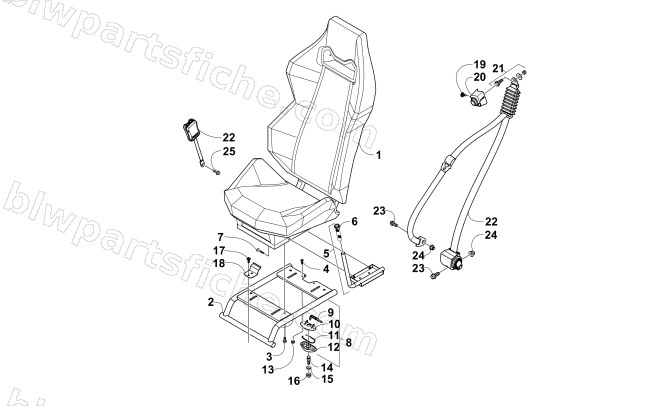

SEAT ASSEMBLY
2013 WILDCAT 1000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-163 | SEAT,BLK/RED-ASSEMBLY | 1 | $874.95 | |
| 1 | 4506-532 | SEAT - ASSEMBLY | 1 | $636.95 | |
| 1 | 5506-164 | SEAT,BLK/ORANGE-ASSEMBLY | 1 | $874.95 | |
| 2 | 4506-662 | SUPPORT, SEAT-PTD BLACK | 1 | $93.95 | |
| 3 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 4 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 5 | 5506-173 | HANDLE - ASSY | 1 | $94.95 | |
| 6 | 4606-945 | GRIP,HANDLEBAR-6.25" | 1 | $17.87 | |
| 7 | 8477-635 | SCREW,MACH-TSTRH M6X1.0X35 Z&BLK | 1 | $0.81 | |
| 8 | 2706-164 | SEAT LATCH-MFG ASSY | 1 | $15.11 | |
| 9 | 2606-854 | LEVER,RELEASE-SEATLATCH | 1 | $9.59 | |
| 10 | 1673-635 | COVER,LATCH-SEAT | 1 | $5.95 | |
| 11 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 12 | 1673-634 | BACK,LATCH-SEAT | 1 | $8.95 | |
| 13 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 14 | 0423-559 | STUD,LATCH-SEAT | 1 | $13.73 | |
| 15 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 16 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 17 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 18 | 4506-691 | BRACKET, SEAT MOUNTING-PTD BLACK | 1 | $10.97 | |
| 19 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 20 | 2416-936 | COVER,SEATBELT-RH | 1 | $20.63 | |
| 20 | 2416-937 | COVER,SEATBELT-LH | 1 | $20.63 | |
| 21 | 0423-915 | SHOULDER BOLT ASSY (PKG) | 1 | $20.63 | |
| 22 | 5506-159 | BELT,SEAT-3PT 11.5" NAR CABLE-ASSY | 1 | $324.95 | |
| 23 | 1423-182 | SCREW,CAP-HFH M12X1.75X30 CL10.9 RIE BLK | 1 | $3.71 | |
| 24 | 1423-184 | NUT,HEX FLG-NYL LOCK M12X1.75 CL10 Z&Y | 1 | $1.64 | |
| 25 | 1423-183 | SCREW,CAP-HFHM12X1.75X30CL10.9RIE W/2353 | 1 | $3.85 |
