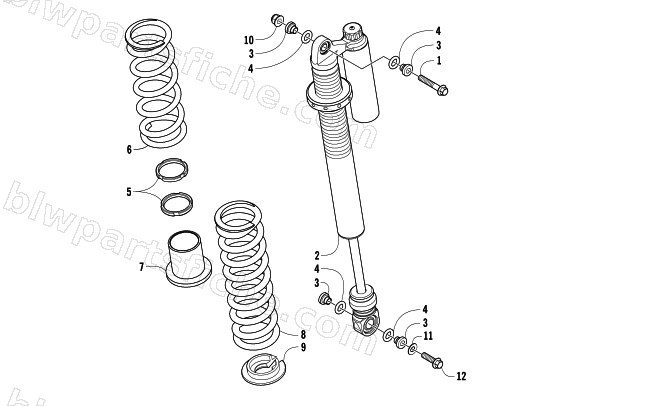

2013 Arctic Cat WILDCAT 1000 LTD — REAR SUSPENSION SHOCK ASSEMBLY
2013 WILDCAT 1000 LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 2 | 0404-213 | SHOCK ABSORBER-REAR S3 | 1 | $729.95 | |
| 3 | 0404-264 | SPACER,REAR SHOCK MOUNT | 1 | $5.65 | |
| 4 | 0403-273 | O-RING, SHOCK SPACER | 1 | $5.09 | |
| 5 | 0404-275 | NUT,JAM-SHOCK | 1 | $50.95 | |
| 6 | 0504-699 | SPRING, REAR - TENDER - PTD WHITE | 1 | $49.95 | |
| 7 | 0403-280 | SLIDER,SPRING (61.4 OD X 89 L) | 1 | $12.35 | |
| 8 | 0504-698 | SPRING, REAR - MAIN - PTD WHITE | 1 | $75.95 | |
| 9 | 0403-272 | RETAINER, SPRING | 1 | $34.95 | |
| 10 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 11 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 12 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 |
