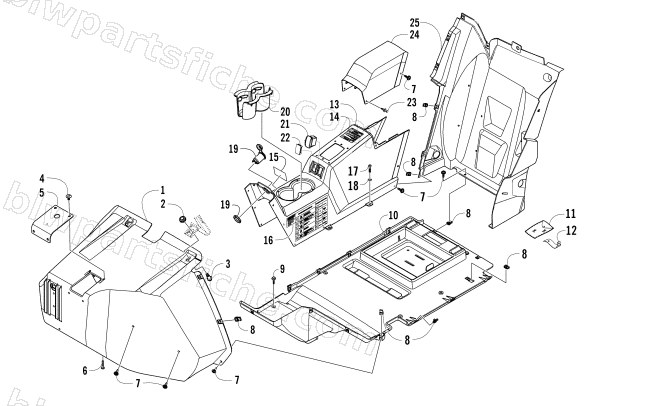

2013 Arctic Cat WILDCAT 1000 LTD LATE BUILD — CONSOLE AND FLOOR PANEL ASSEMBLY
2013 WILDCAT 1000 LTD LATE BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-592 | PANEL,INNER FENDER-FRT-RH | 1 | $100.95 | |
| 1 | 2416-593 | PANEL,INNER FENDER-FRT-LH | 1 | $100.95 | |
| 2 | 1423-104 | GROMMET | 1 | $1.37 | |
| 3 | 1423-125 | SCREW,SHOULDER-MR 6 X 1.0 X 24mm | 1 | $4.68 | |
| 4 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 5 | 2416-983 | SHIELD,SPLASH-BRAKE PEDAL | 1 | $4.82 | |
| 6 | 1423-083 | SCREW,TSPH 1/4-10 X 1-1/4 PLASTITE | 1 | $2.19 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 1423-142 | SCREW,HH W/SPRING WASHER M6X1.0X30 | 1 | $1.64 | |
| 10 | 2416-516 | PANEL,FLOOR-RH | 1 | $148.95 | |
| 10 | 2416-517 | PANEL,FLOOR-LH | 1 | $148.95 | |
| 11 | 2516-863 | KIT,TOOL-HDX | 1 | $69.95 | |
| 12 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 13 | 7506-083 | CONSOLE,FRONT W/DECALS | 1 | $92.95 | |
| 14 | 3411-262 | DECAL,WARNING-REVERSE | 1 | $10.97 | |
| 15 | 2411-311 | DECAL,STARTING INSTRUCTIONS-PARK | 1 | $13.73 | |
| 16 | 2411-940 | DECAL,WARNING-TCLOC WILDCAT (BLACK) | 1 | $13.73 | |
| 17 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 18 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 19 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 20 | 2416-109 | GROMMET,CUPHOLDER | 1 | $37.95 | |
| 21 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 22 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 24 | 2416-841 | PANEL,ACCESS-BATTERY | 1 | $37.95 | |
| 25 | 4406-228 | PANEL,REAR SPLASH-RH | 1 | $82.95 | |
| 25 | 4406-229 | PANEL,SPLASH-REAR-LH | 1 | $82.95 |
