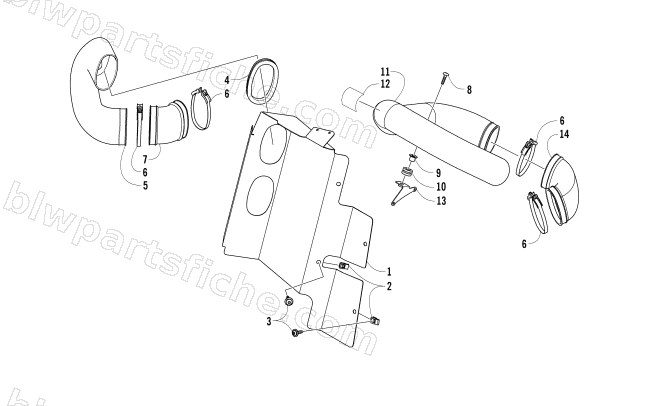

CASE/BELT COOLING ASSEMBLY
2013 WILDCAT 1000 LTD LATE BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-974 | SHIELD,HEAT-AIR INTAKE | 1 | $128.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0470-945 | GROMMET, AIR INTAKE DUCT | 1 | $5.65 | |
| 5 | 0413-295 | DUCT,FRONT-CLUTCH VENT | 1 | $54.95 | |
| 6 | 0423-057 | CLAMP,HOSE-WORM (NORMA 70-90X9mm) | 1 | $4.40 | |
| 7 | 0413-294 | BOOT,FRONT-CLUTCH VENT | 1 | $20.63 | |
| 8 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 9 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 10 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 11 | 0513-047 | DUCT,REAR-CLUTCH VENT ASSY | 1 | $58.95 | |
| 12 | 0413-307 | TAPE,HEAT-CLUTCH DUCT | 1 | $2.06 | |
| 13 | 2416-818 | MOUNT, CLUTCH DUCT | 1 | $10.97 | |
| 14 | 0413-296 | BOOT,REAR-CLUTCH VENT | 1 | $30.95 |
