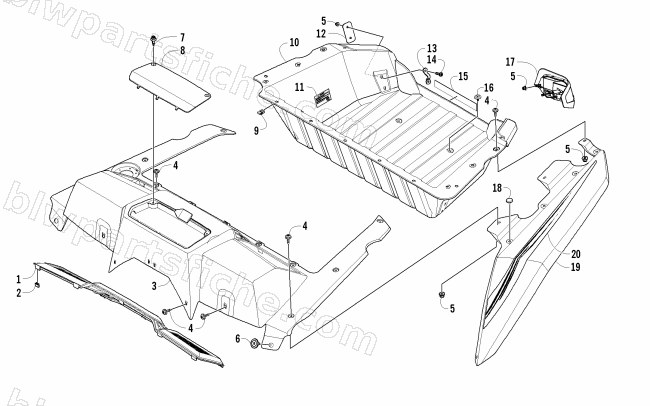

2013 Arctic Cat WILDCAT 1000 LTD LATE BUILD — CARGO BOX AND TAILLIGHT ASSEMBLY
2013 WILDCAT 1000 LTD LATE BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-956 | GRILLE,REAR | 1 | $41.95 | |
| 2 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 3 | 5506-154 | PANEL,COVER-REAR VM RED-PTD | 1 | $647.95 | |
| 3 | 4506-774 | PANEL,COVER,REAR M.BLACK-PTD | 1 | $567.95 | |
| 3 | 5506-155 | PANEL,COVER-REAR SLVR DLR WHT-PTD | 1 | $647.95 | |
| 4 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 1423-107 | SCREW, SHOULDER - M6 X 1.0 | 1 | $5.92 | |
| 7 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 8 | 2416-825 | PANEL,ACCESS-RADIATOR BLK | 1 | $15.11 | |
| 9 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 10 | 4406-167 | BOX,CARGO-REAR (W/DECALS) | 1 | $230.95 | |
| 11 | 4411-791 | DECAL,WARNING-CARGO | 1 | $4.95 | |
| 12 | 2416-573 | BRACKET, CARGO PLATE | 1 | $3.71 | |
| 13 | 4506-634 | BRACKET, CARGO STRAP-PTD BLACK | 1 | $8.21 | |
| 14 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 15 | 2411-944 | DECAL,REAR-FLAG | 1 | $26.95 | |
| 16 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 17 | 0509-056 | TAILLIGHT,RH-LED ASSY (012 WC) | 1 | $149.95 | |
| 17 | 0509-057 | TAILLIGHT,LH-LED ASSY (012 WC) | 1 | $149.95 | |
| 18 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 19 | 4506-760 | PANEL,FENDER-RR-RH M.BLACK-PTD | 1 | $212.95 | |
| 19 | 4506-761 | PANEL,FENDER-RR-LH M.BLACK-PTD | 1 | $212.95 | |
| 19 | 5506-148 | PANEL,FENDER-RR-RH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 19 | 5506-149 | PANEL,FENDER-RR-LH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 20 | 3411-168 | DECAL,FENDER-REAR-WC-VR-RH | 1 | $17.87 | |
| 20 | 3411-169 | DECAL,FENDER-REAR-WC-VR-LH | 1 | $17.87 | |
| 20 | 3411-126 | DECAL,FENDER-REAR-WC-BLK-RH | 1 | $17.87 | |
| 20 | 3411-127 | DECAL,FENDER-REAR-WC-BLK-LH | 1 | $17.87 | |
| 20 | 3411-182 | DECAL,FENDER-REAR-WC-WHT-RH | 1 | $17.87 | |
| 20 | 3411-183 | DECAL,FENDER-REAR-WC-WHT-LH | 1 | $17.87 | |
| 20 | 3411-154 | DECAL,FENDER-REAR-WC-ORG-RH | 1 | $15.11 | |
| 20 | 3411-155 | DECAL,FENDER-REAR-WC-ORG-LH | 1 | $15.11 | |
| 20 | 3411-140 | DECAL,FENDER-REAR-RH-AGM (WC) | 1 | $17.87 | |
| 20 | 3411-141 | DECAL,FENDER-REAR-LH-AGM (WC) | 1 | $17.87 |
