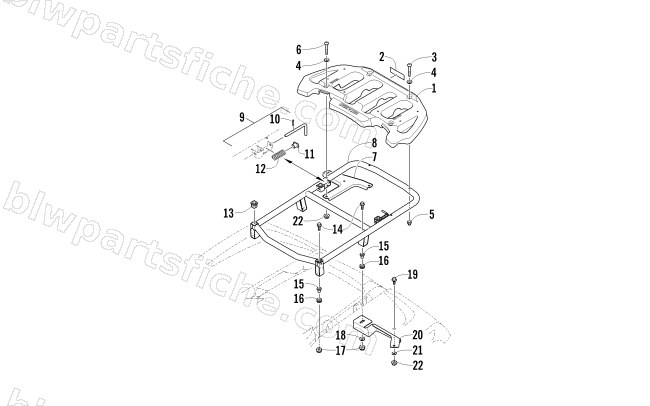

REAR RACK ASSEMBLY
2013 TRV 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-339 | RACK,REAR-TRV ASSY (PLAS) | 1 | $114.95 | |
| 2 | 1411-201 | DECAL,WARNING-RACK(50 LB.) | 1 | $6.47 | |
| 3 | 8410-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 RIE BLK | 1 | $2.47 | |
| 4 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 5 | 0423-891 | NUT,HEX DOMED-SELF LOCKING-M6X1.0 | 1 | $1.23 | |
| 6 | 8410-645 | SCREW,CAP-HFH M6X1.0X45 CL8.8 RIE BLK | 1 | $1.64 | |
| 7 | 2506-926 | BRACKET,FLAG-SAFETY-PAINTED | 1 | $45.95 | |
| 8 | 2516-169 | RACK,REAR FRAME-ASSY | 1 | $272.95 | |
| 9 | 0541-504 | PIN,MRP-ASSY | 1 | $20.63 | |
| 10 | 0423-635 | PIN,ROLL-2.5MM | 1 | $1.37 | |
| 11 | 0423-677 | COLLAR,SEAT LATCH | 1 | $2.06 | |
| 12 | 0423-636 | SPRING,MRP LATCH | 1 | $3.57 | |
| 13 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 14 | 8410-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 RIE BLK | 1 | $2.06 | |
| 15 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 16 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 17 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 18 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 19 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 20 | 2506-092 | BRACKET,REAR FENDER SUPPORT-RH-PAINTED | 1 | $26.95 | |
| 20 | 2506-093 | BRACKET,REAR FENDER SUPPORT-LH-PAINTED | 1 | $26.95 | |
| 21 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 22 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
