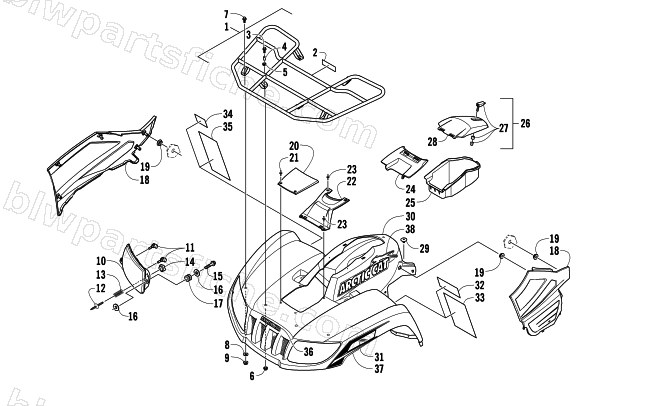

2013 Arctic Cat TRV 400 — FRONT RACK, BODY PANEL, AND HEADLIGHT ASSEMBLIES
2013 TRV 400
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4506-828 | RACK,FRONT-ASSY (A-BODY VP) | 1 | $324.95 | |
| 2 | 0411-576 | DECAL,WARNING-TRV RACK (100 LB.) | 1 | $24.77 | |
| 3 | 8410-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE BLK | 1 | $1.09 | |
| 4 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 5 | 0423-465 | GROMMET,RUBBER-12.7X23.8125 | 1 | $3.16 | |
| 6 | 8432-802 | NUT,HEX-THK NYL M8X1.25 CL10 Z&Y | 1 | $0.68 | |
| 7 | 0423-654 | SCREW,SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK | 1 | $1.37 | |
| 8 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 0509-044 | HEADLIGHT,RH-ASSY | 1 | $163.95 | |
| 10 | 0509-035 | HEADLIGHT, LH - ASSY | 1 | $163.95 | |
| 11 | 0409-055 | BULB,HEADLIGHT-881 | 1 | $20.95 | |
| 12 | 0423-514 | STUD,DOUBLE END-M5X.8 | 1 | $4.95 | |
| 13 | 0423-522 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $1.92 | |
| 14 | 0423-513 | KNOB,ADJUSTMENT-M5 | 1 | $5.65 | |
| 15 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0423-447 | GROMMET,GAUGE MOUNT | 1 | $2.19 | |
| 18 | 2406-326 | PANEL,SIDE-RH (400 TRV) | 1 | $66.95 | |
| 18 | 2406-327 | PANEL,SIDE-LH (400 TRV) | 1 | $66.95 | |
| 19 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 20 | 1406-358 | RADIATOR-ACCESS | 1 | $16.49 | |
| 21 | 0423-535 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.37 | |
| 22 | 1406-484 | COVER,STEERING POST | 1 | $17.87 | |
| 23 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 24 | 0470-513 | COVER, STORAGE BOX | 1 | $22.01 | |
| 25 | 1406-573 | BOX,STORAGE | 1 | $26.95 | |
| 26 | 2506-234 | LID,STORAGE BOX-W/LATCH | 1 | $32.95 | |
| 27 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 28 | 0470-514 | LID, STORAGE BOX | 1 | $24.77 | |
| 29 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 30 | 4506-247 | FENDER,FRONT BLACK-ASSY | 1 | $360.95 | |
| 31 | 0411-818 | REFLECTOR,FRONT-RH | 1 | $6.47 | |
| 31 | 0411-819 | REFLECTOR,FRONT-LH | 1 | $6.47 | |
| 32 | 1411-574 | DECAL,WARNING-OFF ROAD ONLY | 1 | $3.30 | |
| 33 | 2411-259 | DECAL,WARNING-TRV GENERAL 16 | 1 | $16.49 | |
| 34 | 0411-894 | DECAL,WARNING HILL (TRV) | 1 | $4.95 | |
| 35 | 1411-250 | DECAL,WARNING-PRE RIDE(AE) | 1 | $12.35 | |
| 36 | 1411-725 | DECAL,GRAPHIC-REAR (BLACK) | 1 | $4.95 | |
| 37 | 3411-084 | DECAL,FENDER-FRONT-RH | 1 | $66.95 | |
| 37 | 3411-085 | DECAL,FENDER-FRONT-LH | 1 | $66.95 | |
| 38 | 3411-034 | DECAL,SIDE-RH (A,B,CR BODY) | 1 | $42.95 | |
| 38 | 3411-035 | DECAL,SIDE-LH (A,B,CR BODY) | 1 | $42.95 |
