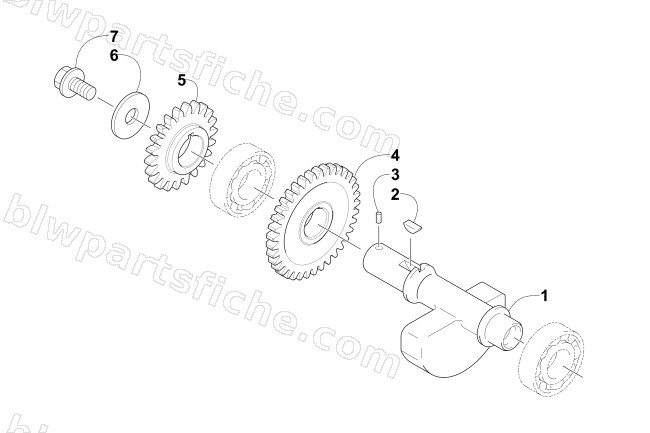

CRANK BALANCER ASSEMBLY
2013 TRV 400
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0811-005 | BALANCER, CRANK | 1 | $129.95 | |
| 2 | 0829-037 | KEY-WOODRUFF-CB SHAFT | 1 | $2.61 | |
| 3 | 3304-144 | PIN DOWEL 4*6.5 | 1 | $1.37 | |
| 4 | 0811-006 | GEAR, DRIVEN - NO. 1 | 1 | $114.95 | |
| 5 | 0811-009 | GEAR, OIL PUMP DRIVE | 1 | $50.95 | |
| 6 | 0828-091 | WASHER-STEEL-30X10X2.5 | 1 | $3.30 | |
| 7 | 0826-118 | SCREW-CAP-HFH M10X1.25X20 W/ THREADLOCK | 1 | $3.57 |
