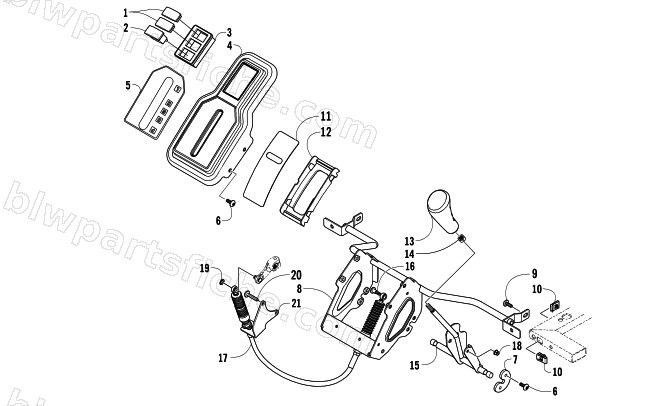

2013 Arctic Cat PROWLER 700 XTX — SHIFTER ASSEMBLY
2013 PROWLER 700 XTX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 2 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 3 | 0409-069 | PANEL,SWITCH MOUNT | 1 | $20.63 | |
| 4 | 1502-959 | GATE,SHIFT-W/PARK-ASSY | 1 | $58.95 | |
| 5 | 3411-006 | DECAL,SHIFT GATE (W/PARK) | 1 | $29.95 | |
| 6 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 7 | 1402-275 | RETAINER ,SHIFT LINKAGE | 1 | $2.88 | |
| 8 | 1502-975 | MOUNT,SHIFTER-PTD BLACK | 1 | $164.95 | |
| 9 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 10 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 11 | 2402-089 | GUIDE, SHIFT | 1 | $2.88 | |
| 12 | 1402-793 | GATE,SHIFT SLIDE | 1 | $8.21 | |
| 13 | 2402-005 | KNOB,SHIFT-3/8-16 THD | 1 | $58.95 | |
| 14 | 0423-885 | NUT, JAM 3/8-16 Z&BLK | 1 | $1.50 | |
| 15 | 1502-973 | LEVER,SHIFT-CONSOLE-PTD PWD BLACK | 1 | $76.95 | |
| 16 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 17 | 0487-093 | CABLE,SHIFT-HEAVY DUTY (XT/X) | 1 | $129.95 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 0124-057 | E-RING | 1 | $1.64 | |
| 20 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 21 | 4406-105 | BRACKET,SHIFT CABLE ENGINE-MTG | 1 | $10.97 |
