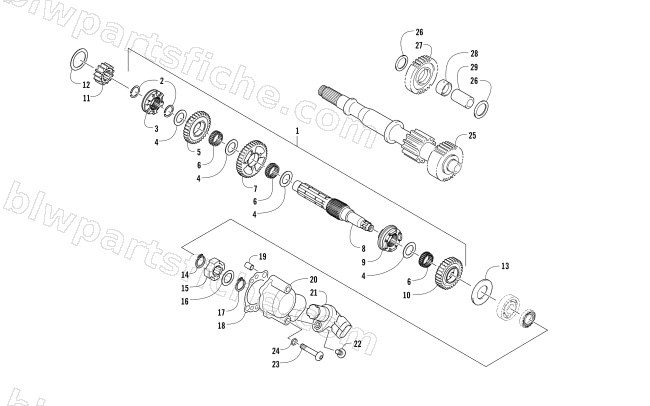

SECONDARY TRANSMISSION ASSEMBLY
2013 PROWLER 700 HDX KE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0822-144 | COUNTERSHAFT ASSY - UC | 1 | $730.95 | |
| 2 | 0831-085 | CIRLCLIP,CE-SHAFT-EXTERNAL | 1 | $5.78 | |
| 3 | 0822-120 | DOG,SLIDING-REVERSE SD | 1 | $102.95 | |
| 4 | 0822-121 | SHIM,DRIVE GEAR SPACER | 1 | $17.87 | |
| 5 | 0822-119 | GEAR,REVERSE-DRIVEN-32T | 1 | $156.95 | |
| 6 | 0832-082 | BEARING,ROLLER NEEDLE-25X30X13 | 1 | $42.95 | |
| 7 | 0822-114 | GEAR,DRIVEN-LOW-40T | 1 | $150.95 | |
| 8 | 0822-113 | COUNTERSHAFT-SD | 1 | $331.95 | |
| 9 | 0822-145 | DOG,SLIDING-FORWARD UC | 1 | $177.95 | |
| 10 | 0822-148 | GEAR,DRIVEN-HIGH, (30T - UC) | 1 | $144.95 | |
| 11 | 0822-125 | GEAR,SPUR-13T-13T 20 DEGREES PA | 1 | $85.95 | |
| 12 | 0828-019 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $8.21 | |
| 13 | 0828-011 | WASHER, STEEL 20 x 40 x 1 | 1 | $6.75 | |
| 14 | 0831-040 | RING, EXTERNAL RETAINING - DSH-17 | 1 | $0.40 | |
| 15 | 0822-050 | TRIGGER, SPEEDO SENSOR | 1 | $16.49 | |
| 16 | 0828-069 | WASHER, THRUST | 1 | $1.37 | |
| 17 | 0831-039 | RING,EXTERNAL RETAINING - DSH-13 | 1 | $0.26 | |
| 18 | 0830-129 | GASKET,ODOMETER DRIVE | 1 | $3.44 | |
| 19 | 0829-023 | PIN, SOLID DOWEL (6 X12) | 1 | $3.16 | |
| 20 | 0822-049 | HOUSING, SPEEDO SENSOR | 1 | $33.95 | |
| 21 | 0430-091 | SENSOR,SPEEDO- MX | 1 | $49.95 | |
| 22 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 23 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 24 | 0830-107 | SEAL,FASTENER | 1 | $4.95 | |
| 25 | 0822-001 | DRIVESHAFT | 1 | $324.95 | |
| 26 | 0828-016 | WASHER,THRUST, SECONDARY TRANSMISSION | 1 | $5.51 | |
| 27 | 0822-011 | GEAR, REVERSE IDLE | 1 | $84.95 | |
| 28 | 0822-012 | BUSHING, REVERSE IDLE GEAR | 1 | $30.95 | |
| 29 | 0822-015 | SHAFT, REVERSE IDLE | 1 | $30.95 |
