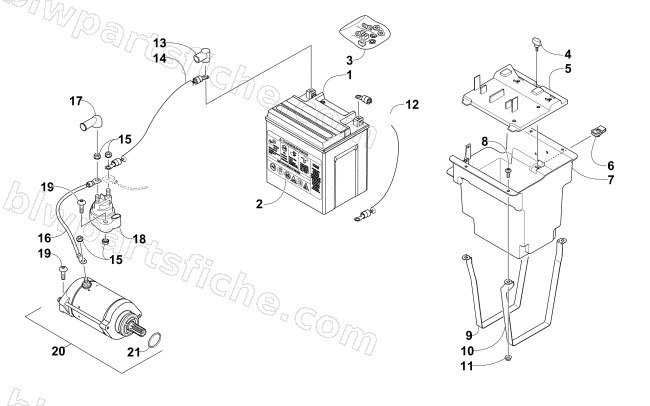

BATTERY AND STARTER MOTOR ASSEMBLY
2013 PROWLER 700 HDX KE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0445-115 | BATTERY,AGM-30AH-ASSY (YIX30L-BS) | 1 | $245.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 1441-624 | KNOB,PLASTIC-BLK | 1 | $8.21 | |
| 5 | 2406-947 | COVER,BATTERY-700 XTX | 1 | $23.39 | |
| 6 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 7 | 2406-914 | BOX,BATTERY | 1 | $54.95 | |
| 8 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 9 | 0470-854 | STRAP,BATTERY BOX-RH | 1 | $54.95 | |
| 10 | 0470-855 | STRAP,BATTERY BOX-LH | 1 | $54.95 | |
| 11 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 12 | 0445-050 | CABLE,BATTERY-ENGINE (40" BLK #6) | 1 | $42.95 | |
| 13 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 14 | 0445-078 | CABLE,BATTERY-RELAY (12" RED #6) | 1 | $26.95 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0445-061 | CABLE,SOLENOID-STARTER (40" RED #6) | 1 | $42.95 | |
| 17 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 18 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 19 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 20 | 0825-024 | MOTOR,STARTER-ENGINE (PD 11.25) | 1 | $268.95 | |
| 21 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 |
