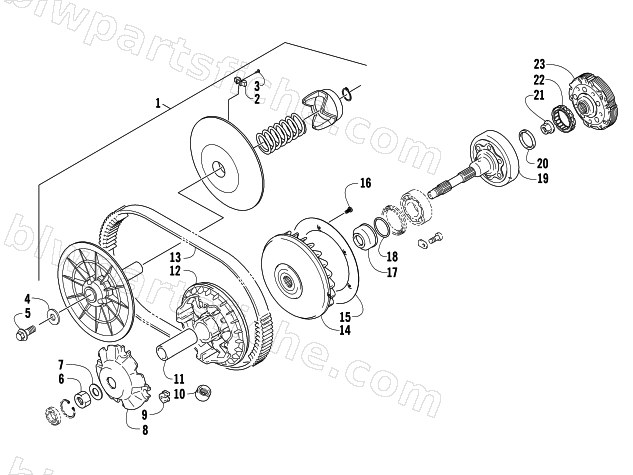

TRANSMISSION ASSEMBLY
2013 PROWLER 550 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0823-536 | PULLEY,DRIVEN-ASSY(LP3) | 1 | $743.95 | |
| 2 | 0823-176 | SHOE,CAM-DRIVEN PULLEY | 1 | $20.63 | |
| 3 | 0823-177 | SCREW,CAM SHOE | 1 | $2.06 | |
| 4 | 0623-929 | WASHER,FLAT-7/16 X 1 1/2 X 3/16 Z&C | 1 | $4.68 | |
| 5 | 8413-241 | SCREW,CAP-HFH M12X1.25X40 CL10.9W/2353 | 1 | $8.54 | |
| 6 | 0827-010 | NUT,HEX COUNTERSUNK (M20x1.5) | 1 | $5.95 | |
| 7 | 0828-106 | WASHER, CLUTCH PLATE | 1 | $3.44 | |
| 8 | 0823-276 | PLATE,MOVABLE DRIVE-Z- | 1 | $26.95 | |
| 9 | 0823-277 | DAMPER,MOVABLE DRIVE-Z- | 1 | $4.68 | |
| 10 | 0823-164 | ROLLER,MOVABLE DRIVE(RED) (PM 19G) | 1 | $5.51 | |
| 11 | 0823-271 | SPACER,MOVABLE DRIVE FACE 91 -Z- | 1 | $45.95 | |
| 12 | 0823-273 | SHEAVE,MOVABLE DRIVE-ASM-Z- | 1 | $185.95 | |
| 13 | 0823-013 | BELT, DRIVE | 1 | $147.95 | |
| 14 | 0823-272 | SHEAVE,STATIONARY-DRIVE-MACH-Z- | 1 | $82.95 | |
| 15 | 0823-131 | SHROUD,STAT SHEAVE-DRIVE | 1 | $52.95 | |
| 16 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 17 | 0823-015 | SPACER, FIXED DRIVE | 1 | $58.95 | |
| 18 | 0470-531 | O-RING,INTAKE MANIFOLD | 1 | $3.16 | |
| 19 | 0823-365 | R/B 0823-556 | 1 | $342.95 | |
| 20 | 0830-189 | SEAL,DRUM SHAFT | 1 | $10.97 | |
| 21 | 0827-011 | NUT,HF-CCW M18x1.5 | 1 | $4.54 | |
| 22 | 0823-018 | CLUTCH, ONE WAY ASM | 1 | $156.95 | |
| 23 | 0823-484 | CLUTCH CENTRIFICAL-6 PLATE-Z 2 | 1 | $243.95 |
